3.3V Linear Current Sensor IC with 100µΩ Conductor and Enhanced Noise Immunity

ACS759

Markets Served

These parts are in production but have been determined to be NOT FOR NEW DESIGN. Please refer to ACS772 and ACS773 for new designs.

The ACS759 offers accurate and efficient current sensing optimized for 3.3V operation, with a 100µΩ conductor, integrated shield for enhanced noise immunity, and high isolation.

View Datasheet

Product Details

Top Features

Industry-leading noise performance through proprietary amplifier and filter design techniques
Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications
Total output error improvement through gain and offset trim over temperature

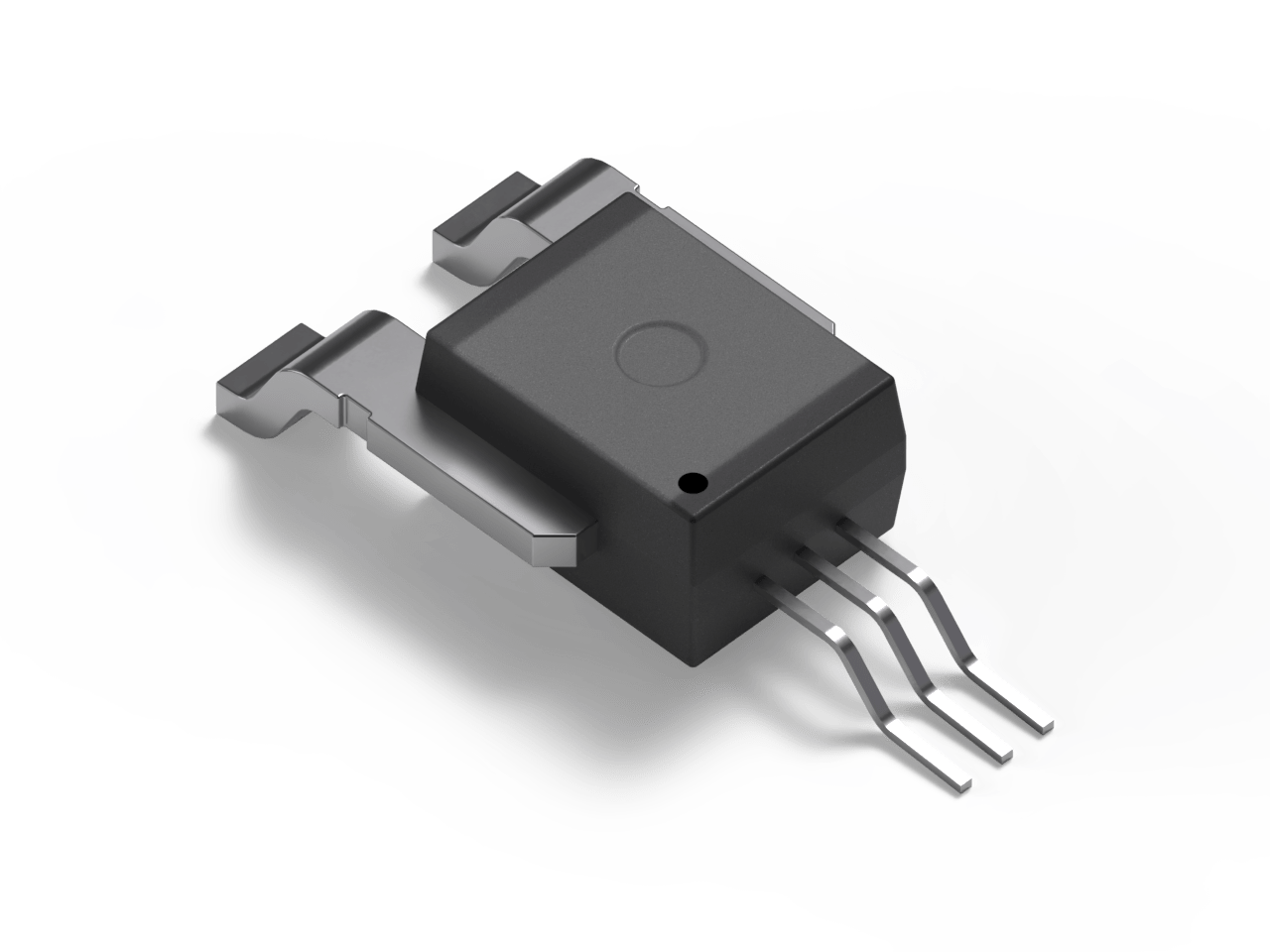

Small package size, with easy mounting capability
Monolithic Hall IC for high reliability
Ultra-low power loss: 100 µΩ internal conductor resistance
Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
3.0 to 3.6 V, single supply operation
120 kHz typical bandwidth
3 µs output rise time in response to step input current
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
