2D Dual-Channel Ultrasensitive Hall-Effect Latch for Motor and Encoder Applications

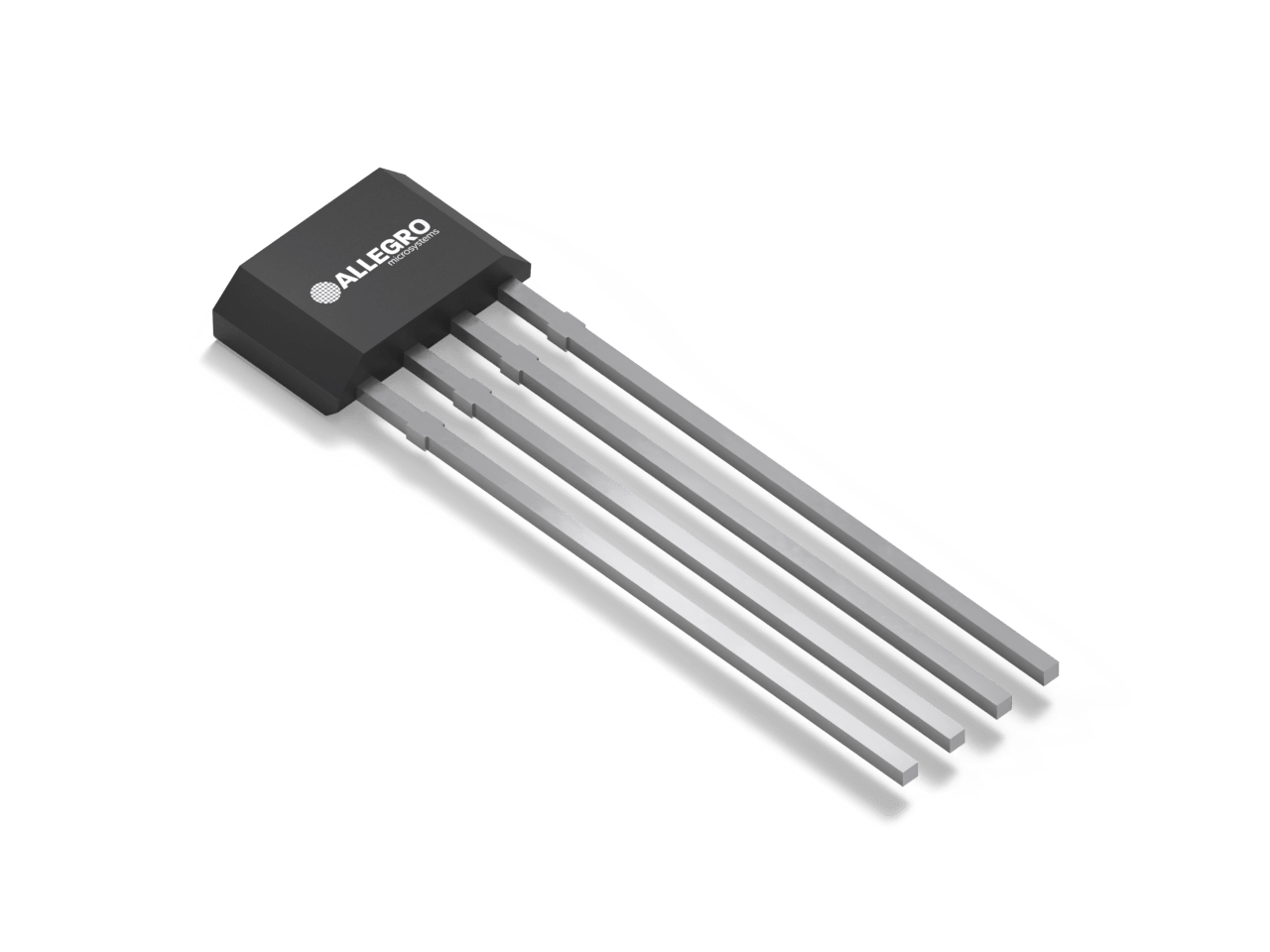

A1262

The A1262 simplifies motor and encoder design with its 2D architecture, providing quadrature output from both vertical and planar Hall elements. Its ultrasensitive operation and 90° phase separation ensure precise and reliable performance.

View Datasheet

Product Details

Top Features

2D magnetic sensing via planar and vertical Hall elements
- Quadrature outputs
- 90° phase separation between channels
Dual-channel output allows independent use of Z-axis planar Hall in conjunction with vertical Hall:
- Y-axis (default option)
- X-axis (with -X option)
High sensitivity, BOP typically 17 G
Automotive grade
- AEC-Q100 qualified for use in automotive applications (L temperature range option)
- Output short-circuit protection
- Resistant to physical stress
- Reverse-battery protection
- Superior temperature stability
- Supply voltage Zener clamp
Small size
