24V Hall-effect Switches for Automotive and Industrial Applications

APS11203

24V Hall-effect Switches for Automotive and Industrial Applications - aps11203, aps12203

The APS11203 is a third generation Hall-effect switch featuring chopper-stabilization for precision performance over both industrial and automotive temperature ranges. Models are available supporting omnipolar and unipolar operation with both high and low polarity output options. The APS11203 incorporates Allegro’s latest design and manufacturing technologies to deliver an unprecedented level of performance and value across automotive, industrial and consumer applications.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings APS11203 ECAD Model Type Image

Description

Top Features

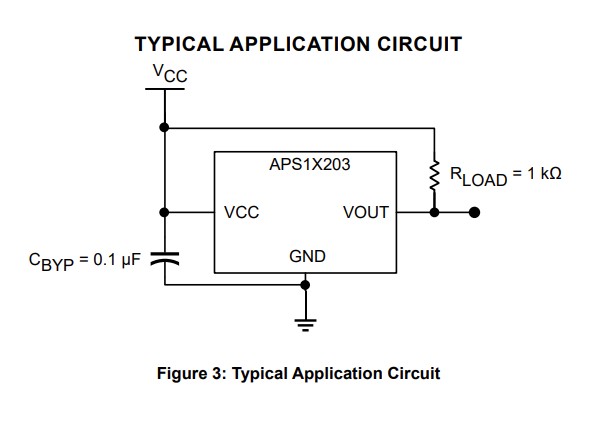

Typical Applications

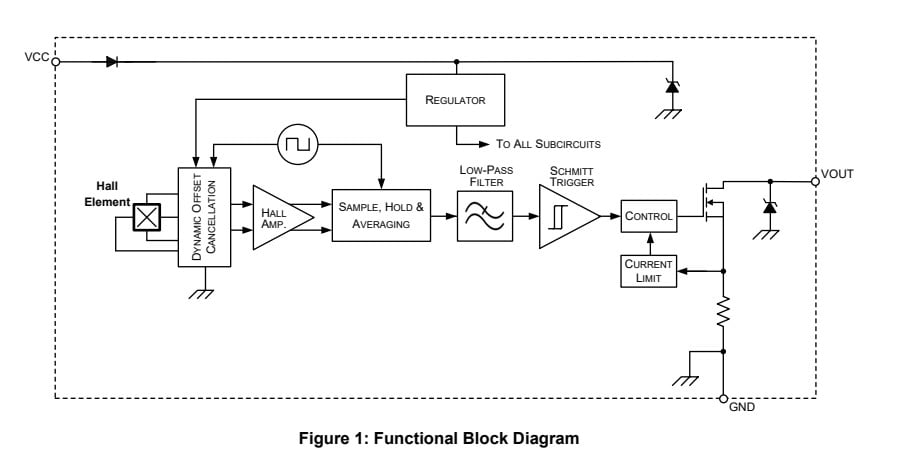

The APS11203 Hall-effect switch sensors are AEC-Q100 qualified for high-voltage automotive and industrial applications. These ICs are temperature-stable and offer precision performance over an extended junction temperature range up to 165°C. This family of Hall-effect switches provides contactless sensing of magnetic fields and an open drain output that actuates in response to the detected filed strength at the branded package face. A wide range of available models allows for the selection of devices capable of responding to magnetic fields of both north and south polarity, and varying field strengths. In addition, the APS11203 is designed to maximize system robustness with features that include reverse-battery protection, an output current limiter, and overvoltage protection.

  • 2.7 to 26V operation
  • AEC-Q100 qualified
  • Omnipolar and unipolar switch threshold options
  • High and low sensitivity magnetic switch point options
  • Choice of output polarity
  • Chopper stabilization
    • Low switch point drift over temperature
    • Insensitive to physical stress
  • Open drain output
  • Solid-state reliability

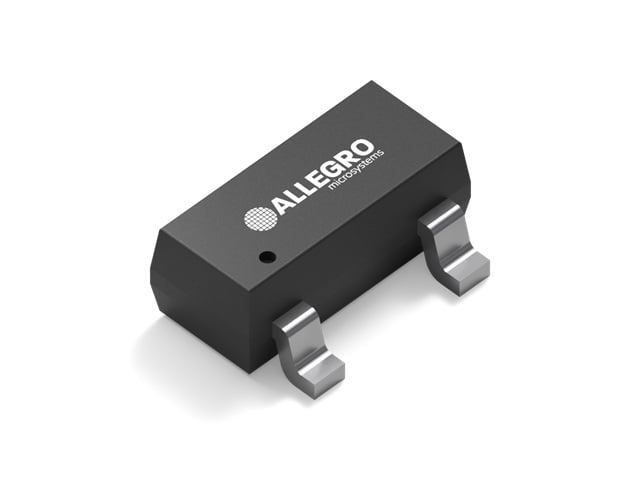

  • Industry-standard package and pinout
