To build the next generation of robotic actuators, engineers need components that guarantee two things: precise position feedback and fluid motion. Allegro MicroSystems enables this leap by combining our high-resolution XtremeSenseTM TMR and inductive sensors with smooth, low latency 48V gate drivers. Together, these highly integrated solutions empower you to design compact, efficient joints that deliver lifelike, responsive actuation and pinpoint accuracy.
Humanoids, Cobots and AMR built on Allegro's best-in-class accuracy magnetic current sensors, cutting-edge inductive motor position sensors, and highly integrated 48V gate drivers. These applications benefit from precise torque control, robust joint positioning, and compact efficient actuator designs that extend battery life and improve safety in human-robot interactions.
Build the next generation of industrial robots, linear transport systems, and forklifts with Allegro’s robust semiconductor portfolio. Our compact motor position sensors and power-dense current sensors deliver reliable positioning and precise motion control in space-constrained joints. For efficient, high-voltage power conversion, highly integrated Power-Thru™ isolated gate drivers maximize SiC and GaN performance, ensuring ultimate reliability and uptime in demanding environments.
Empower your consumer robot designs with Allegro's micropower Hall switches and latches, featuring wider airgap tolerances that reduce overall system costs. For compact, high-performance motion control, our integrated FET motor drivers utilize QuietMotion™ integrated FOC algorithms to drastically reduce audible noise.

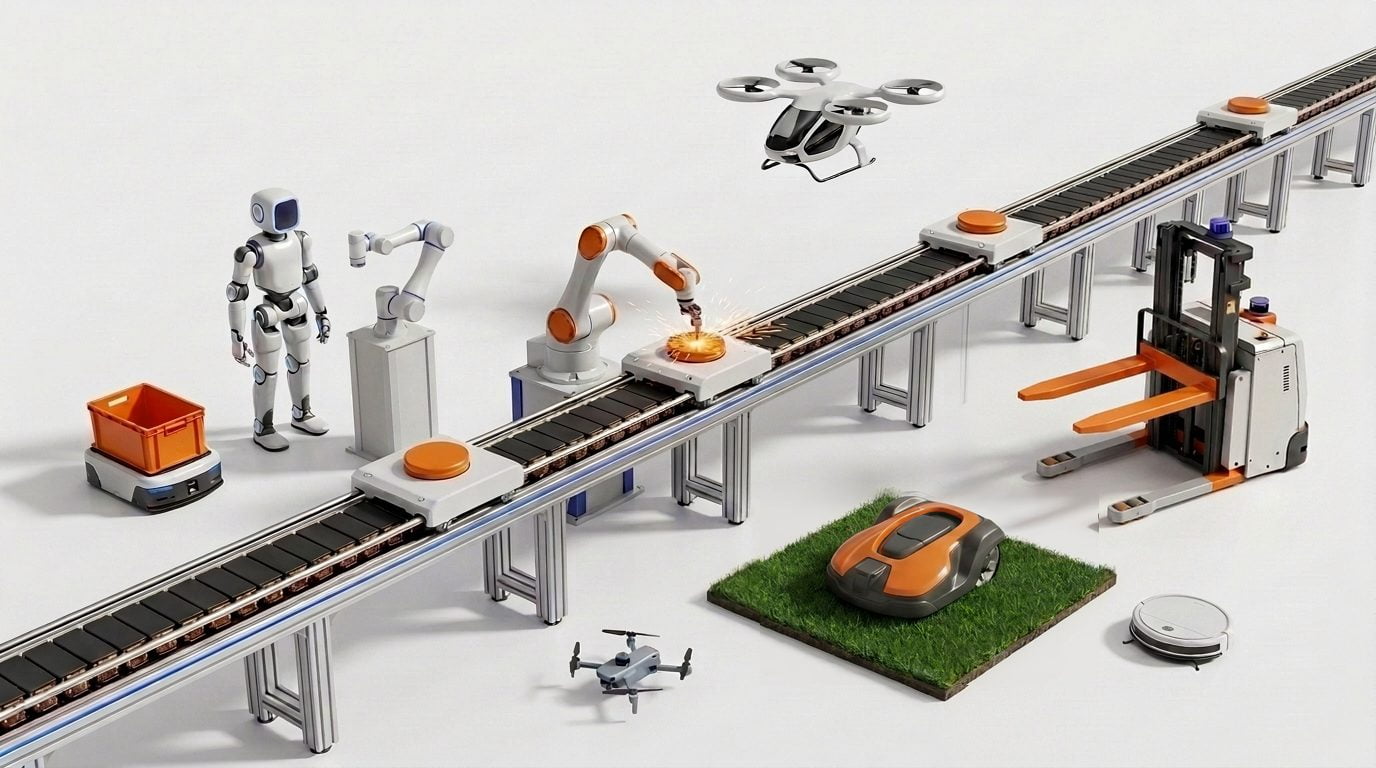

Conceptual illustration only.
Unleashing Robotic Potential Through Unrivaled Power Density and Precision
Leveraging TMR sensors for small footprints while maximizing accuracy and minimizing noise
High-performance inductive motor position sensors enable reduced system cost
3-Phase and half bridge gate drivers with integrated sensing for optimized power density
Explore design resources engineered to accelerate your robot actuator designs.
This white paper explores the intricate world of robotic joint architecture, from the various types of robots and their joint complexities to the crucial role of integrated circuits (ICs) in controlling and driving these joints.
Robotics is evolving at an incredible pace, with industrial automation demanding more powerful and efficient machines, moving away from traditional 12V systems towards higher operating voltages, particularly 48V.
A guide into the AMT49100, Allegro's high performance 48V 3-Phase gate driver for large joint designs.
Allegro hero products developed for small and large robot joints
16-bit resolution, stray field immune, digital output, ideal for large joints to replace high cost encoder solutions.

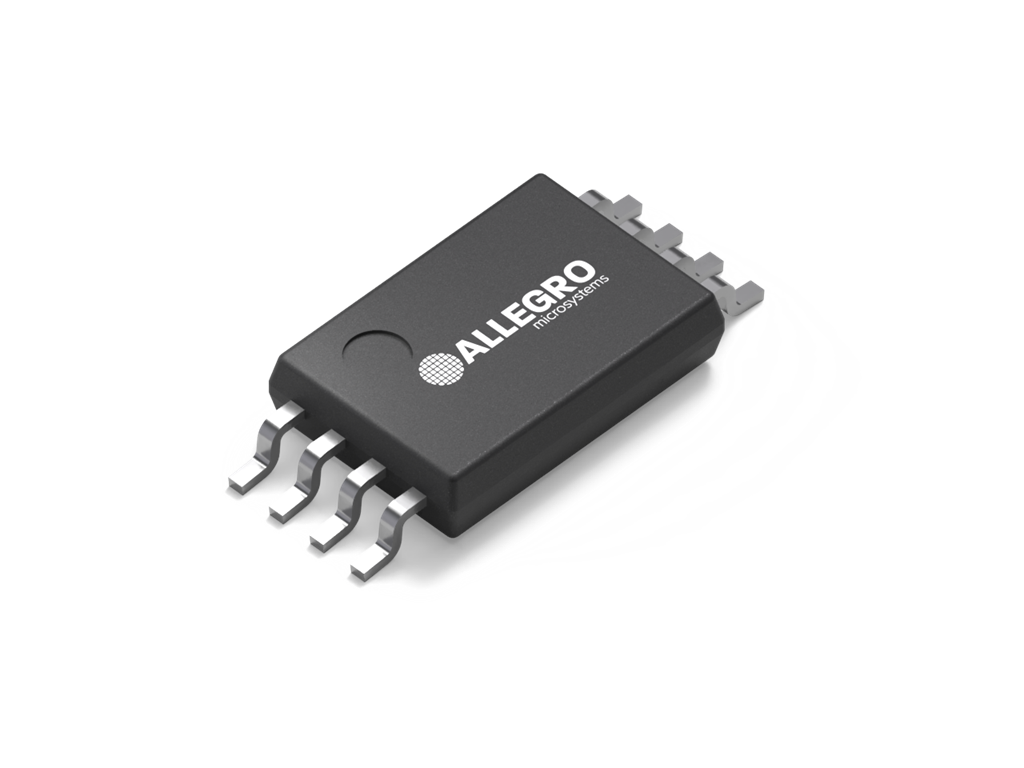

17.5-bit resolution, ultra-compact (2x2 mm) TMR sensor ideal for small joints

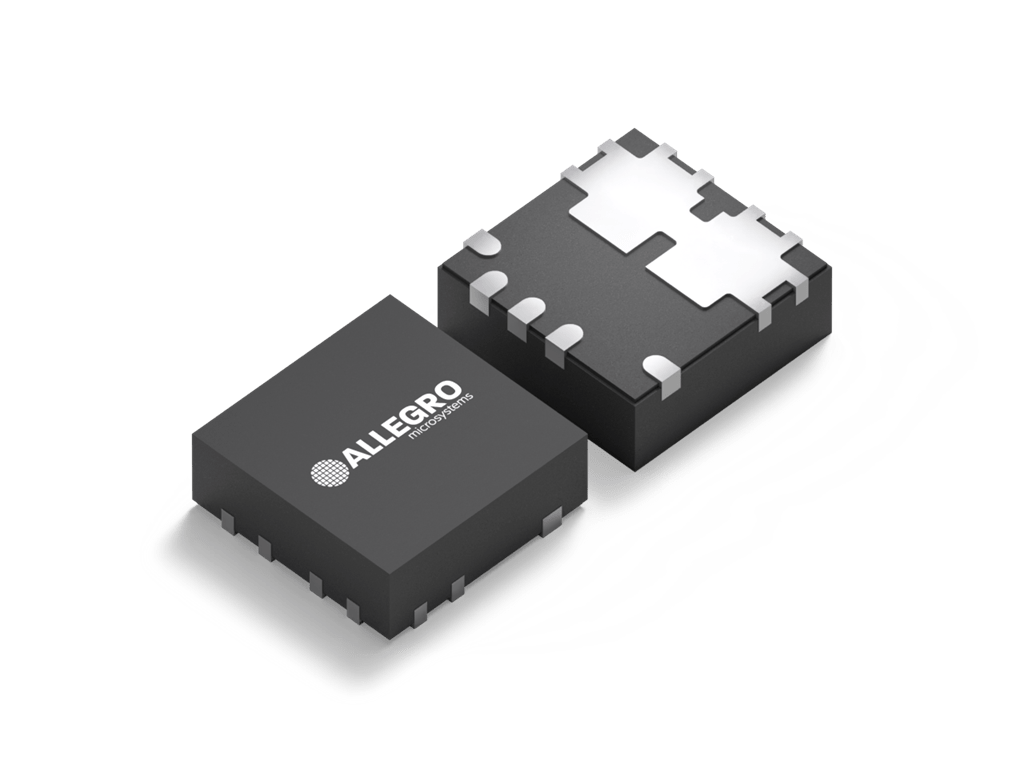

High accuracy ±1.0% sns (-40 to +125°C), ±10 to ±50A current range, compact QFN (3x3 mm) package
High accuracy ±1.4% sns (-40 to +150°C), ±50 to ±200A current range, compact QFN (4x4 mm) package.
48V 3-Phase Gate Driver, Automotive Safety, 7x7 mm package, 3x Integrated Low-Side current sense amplifiers
48V 1/2-Bridge Gate Driver, 100V absolute max voltage ideal for transient immunity, compact DFN (3x3 mm) package.
