AMT49106 and AMT49107: 50V BLDC Gate Drivers with Low Voltage Operation

Description

Top Features

The AMT49106 and AMT49107 are automotive-grade N-channel power MOSFET drivers capable of controlling MOSFETs connected in a 3-phase bridge arrangement, and are ideal for automotive applications with high-power inductive loads used on safety critical applications.

Both products offer the unique ability to provide a high gate drive for a 4.5 V battery without an external inductor system footprint. Gate drive strength is programmable to reduce EMC issues, and the lack of a duty cycle restriction enables smaller motor designs with equivalent torque. The AMT49107 provides dual enable and logic outputs for motor phase voltage, helping provide added safety and redundancy. It includes three high-performance current sense amplifiers for current measurement, adding redundancy and reducing torque ripple.

With state-of-the-art integrated diagnostics, the gate driver can indicate multiple internal faults, system faults, and power bridge faults. It can be configured to protect the power MOSFETs under most short-circuit conditions. For safety-critical systems, the integrated diagnostic operation can be verified under control of the serial interface, which also provides the ability to alter programmable settings and read back detailed diagnostic information.

Designed to ISO 26262, the AMT49106 and AMT49107 are excellent ASIL-D certified solutions for advanced driver safety system (ADAS) applications.

  • 4.5V to 50V operating voltage
  • Developed on ISO26262 process and certified ASIL-D
  • Lack of duty cycle restriction improves torque output
  • Advanced diagnostic validation helps ensure accurate and robust fault diagnostics
  • The AMT49107 is offered in small 7mm x 7mm QFN package to help reduce system footprint
  • The AMT49106 includes three current sense amplifiers for highly accurate and redundant current sensing

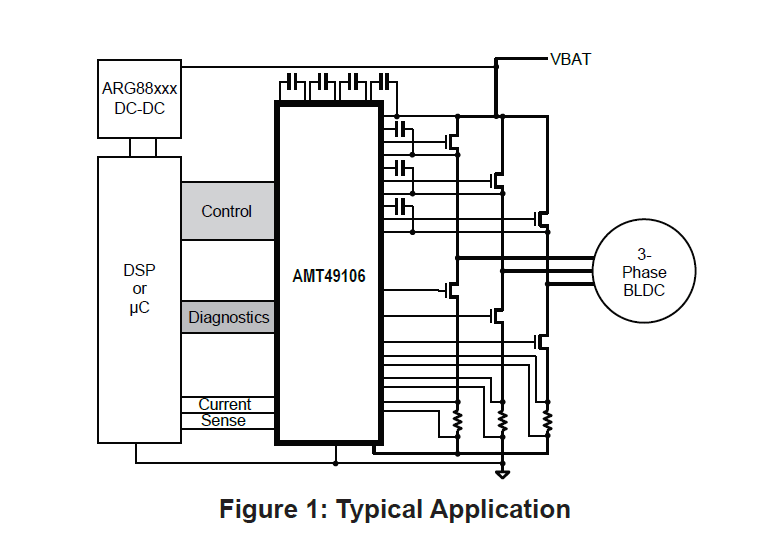

Typical Applications

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
AMT49106KJPTR 48-lead LQFP -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
AMT49107KEVSR-3-T 48-lead QFN/MLP -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
AMT49107KEVSR-5-T 48-lead QFN/MLP -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro 製品が生命維持装置やシステムの故障の原因となることが予期できる場合、または安全性や有効性に影響を及ぼすことが予想できる場合、そのような生命維持装置やシステムに Allegro 製品はご使用いただけません。

Packaging

48-pin QFN with wettable flank (suffix EV)

Allegro 48-Pin QFN EV Package



EV Package Documentation

48-pin LQFP with exposed thermal pad (suffix JP)

Allegero 48 Pin LQFP with exposed thermal pad JP Package

JP Package Documentation

Design Support Resources

APEK49107 Demo Board Configuration Guide
