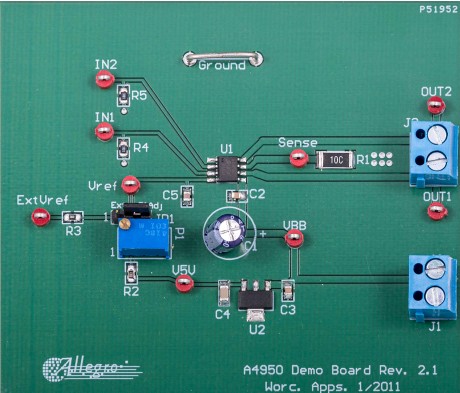

APEK4950ELJ-01-T Evaluation Board

A4950 - Full-Bridge DMOS PWM Motor Driver with Integrated Protection

This evaluation board is used to demonstrate the Allegro A4950xLJ full-bridge DMOS PWM motor driver IC.

Top Features

Contents

  • Onboard voltage regulator for logic inputs
  • Potentiometer to control the peak output current
  • APEK4950ELJ-01-T evaluation board
