1MHz Bandwidth Contactless Current Sensor with Programmable Gain

CT455

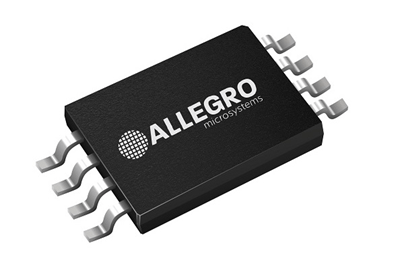

1 MHz Bandwidth Contactless Current Sensor Optimized for High dV/dt Applications Product Image

The CT455 offers high-accuracy contactless current sensing with a 1MHz bandwidth, programmable gain, and low noise performance. Available in both SOIC-8 and TSSOP-8 packages.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings CT455 ECAD Model Type Image

Top Features

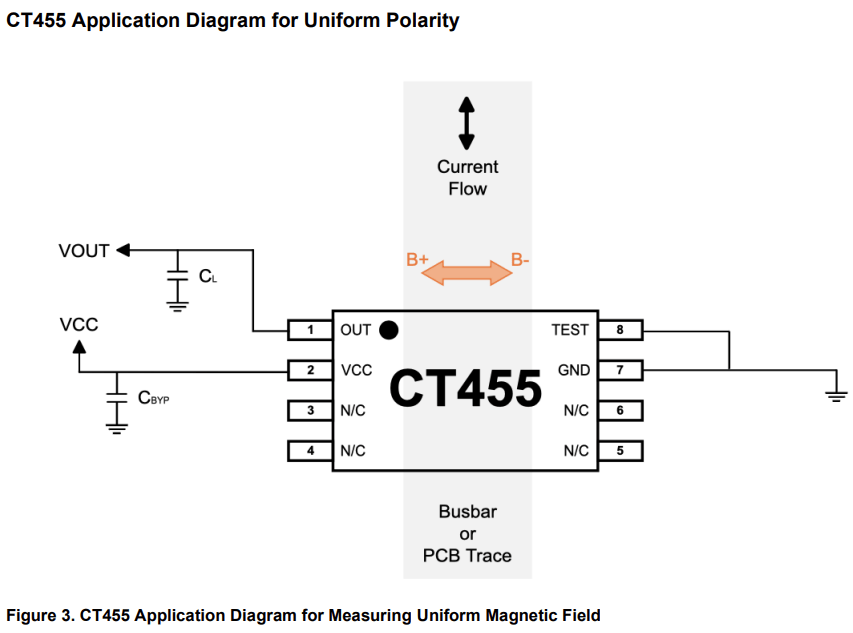

Typical Applications

Packaging

  • Optimized for high dV/dt applications
  • Integrated Contactless Current/Field Sensor
  • Linear Analog Output Voltage
  • 1 MHz Bandwidth
  • Response Time < 300 ns
  • Supply Voltage: 3.3 V to 5.0 V
  • Low Noise Performance
  • AEC-Q100 Grade 1
  • Package Options:
    • 8-lead SOIC
    • 8-lead TSSOP

The CT455 is housed in an 8-lead SOIC package and a very low profile, industry standard 8-lead TSSOP package that are both "green" and RoHS compliant.

Part Number Specifications and Availability

Discover the next generation of magnetic sensing

効率的な電力変換

全ダイナミック レンジで正確に測定し、クリーンな信号を実現します。

ワイド バンドギャップ トランジスタの採用

GAN や SiC などのワイド バンドギャップ トランジスタには、XtremeSense TMR が正確さや分解能を犠牲にすることなく実現している広帯域幅の電流センサーが必要です。

エネルギー フットプリントの削減

磁気センサーのすべての製品カテゴリで、最も低い電力消費を実現しています。

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
