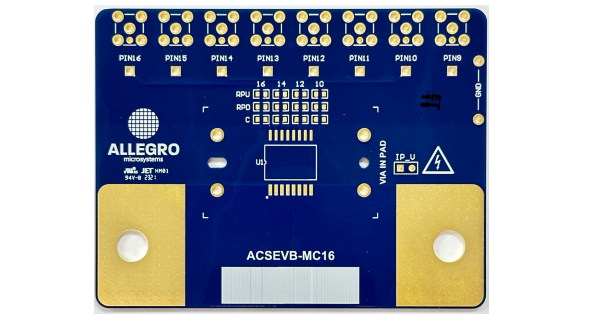

ACSEVB-MC16 Evaluation Board

ACS37002 - 400 kHz, High Accuracy Current Sensor with Pin-Selectable Gains

Bare evaluation boards offer a method for evaluating Allegro current sensors in a lab environment. This document describes the use of the MC current sensor evaluation board. This evaluation board (ACSEVB-MC16, TED-0004115) is intended for use with any MC package (16-pin SOICW Allegro current sensor).

Top Features

Packaging

  • Enhanced thermal performance
    • 6-layer PCB with 2 oz copper weight on all layers
    • Nonconductive-filled via-in-pad □ High-performance FR4 material with 180°C glass transition temperature •
  • Flexible layout for user-installed connection points
    • Standard Keystone test points
    • SMA/SMB connector
    • 2-pin headers
  • Integrated current loop resistance can be measured directly on the evaluation board after test point installation; voltage drop can be measured for approximating power loss in the package.
