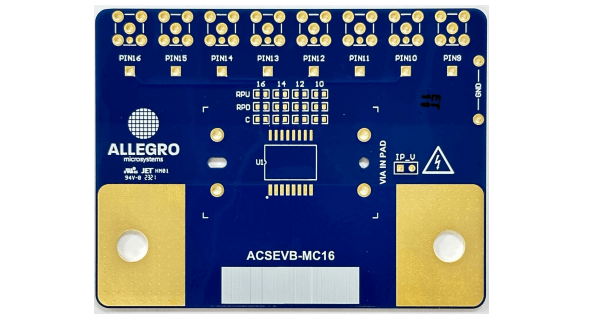

ACSEVB-MC16 Evaluation Board
ACS37002 - 400 kHz, High Accuracy Current Sensor with Pin-Selectable Gains
Bare evaluation boards offer a method for evaluating
Allegro current sensors in a lab environment. This document
describes the use of the MC current sensor evaluation board.
This evaluation board (ACSEVB-MC16, TED-0004115)
is intended for use with any MC package (16-pin SOICW
Allegro current sensor).
Nonconductive-filled via-in-pad
□ High-performance FR4 material with 180°C glass
transition temperature
•
Flexible layout for user-installed connection points
Standard Keystone test points
SMA/SMB connector
2-pin headers
Integrated current loop resistance can be measured directly
on the evaluation board after test point installation; voltage
drop can be measured for approximating power loss in the
package.
NOTE: It is the responsibility of the user to assemble
the board with the desired current sensor and supporting
circuitry. This board does not come populated with an
Allegro current sensor or other components.
Recommended supporting circuitry for all compatible
current sensors is listed in the Supporting Circuitry
section.
