ACSEVB-LC8-LZ6 Evaluation Board

ACS37010, ACS37032, ACS724, ACS725, CT428 - Current Sensors

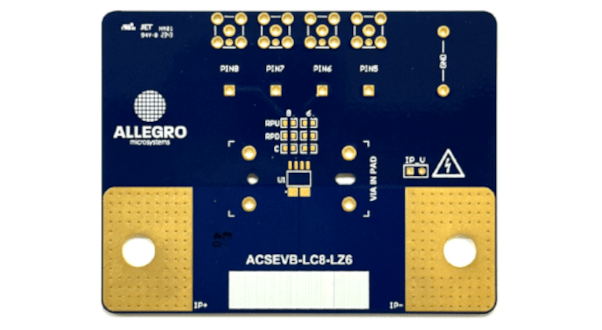

Bare evaluation boards offer a method for evaluating Allegro current sensors in a lab environment. This document describes the use of the LC/LZ/OL Package Bare Evaluation Board. This evaluation board (ACSEVB-LC8-LZ6, TED-0004110) is intended for use with any LC, OL, or LZ package (custom 6-pin or 8-pin SOIC) Allegro Hall-based or TMR-based current sensors.

Top Features

Packaging

  • Enhanced thermal performance
    • 6-layer PCB with 2 oz copper weight on all layers
    • Nonconductive-filled via-in-pad
    • High-performance FR4 material with 180°C glass transition temperature
  • Flexible layout for user installed connection points
    • Standard Keystone test points
    • SMA/SMB connector
    • 2-pin headers
  • Integrated current-loop resistance can be measured directly
    on the evaluation board after test-point installation; voltage
    drop can be measured for approximating power loss in the
    package.
