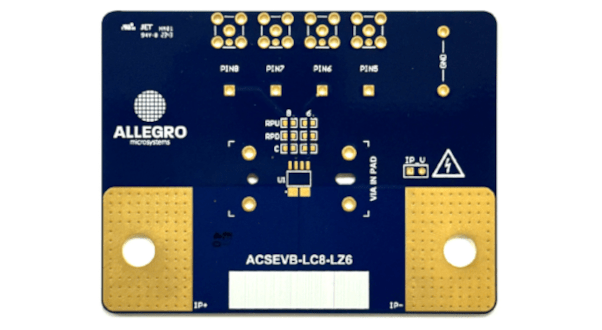

ACSEVB-LC8-LZ6 Evaluation Board
ACS37010, ACS37032, ACS724, ACS725, CT428 - Current Sensors
Bare evaluation boards offer a method for evaluating
Allegro current sensors in a lab environment. This document
describes the use of the LC/LZ/OL Package Bare Evaluation
Board. This evaluation board (ACSEVB-LC8-LZ6,
TED-0004110) is intended for use with any LC, OL, or LZ
package (custom 6-pin or 8-pin SOIC) Allegro Hall-based
or TMR-based current sensors.
High-performance FR4 material with 180°C glass transition temperature
Flexible layout for user installed connection points
Standard Keystone test points
SMA/SMB connector
2-pin headers
Integrated current-loop resistance can be measured directly
on the evaluation board after test-point installation; voltage
drop can be measured for approximating power loss in the
package.
NOTE: It is the responsibility of the user to assemble
the board with the desired current sensor and supporting
circuitry. This board does not come populated with an
Allegro current sensor or other components.
Recommended supporting circuitry for all compatible
current sensors is listed in the Supporting Circuitry
section.
