Vertical Hall Technology
Advances in IC design and fabrication allow the creation of vertical Hall elements sensitive to magnetic fields parallel to the plane of the IC. They function under the same principles as planar Hall elements, which are sensitive only to magnetic fields perpendicular to the plane of the IC. This Z-axis sensitivity is not altered by the sensor IC orientation or rotation. As such, sensing in the plane of the PCB to which the sensor is mounted is not possible using a surface-mount device with only a planar Hall element.
Planar Hall elements are constructed across the length and width of the die (in-plane) as shown in Figure 1. Vertical Hall elements are constructed from bottom to top along the depth of the chip as shown in Figure 2.
Figure 1: Planar Hall element
Figure 2: Vertical Hall element

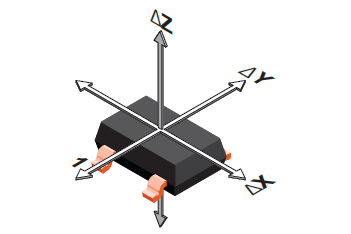

By rotating the IC or altering the orientation of the vertical Hall element on the die, a sensor IC can discriminate magnetic field direction as well as amplitude. An IC with more than one sensing element (see Figure 3) can sense in multiple spatial dimensions.
Figure 3: 3D Sensor IC with planar and vertical Hall sensors
There are several situations in which this can be especially useful:
This logo denotes products that use Allegro's vertical Hall sensor technology
Circular Vertical Hall (CVH) Sensors

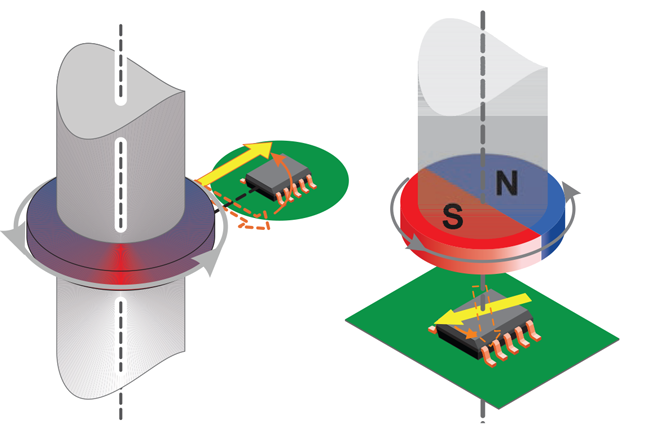

As described above, vertical Hall-effect sensors can be used to discriminate magnetic field direction as well as amplitude. When arranged in a circular array, vertical Hall elements can be used to determine the angle of the applied magnetic field. Sensor ICs integrating a circular vertical Hall (CVH) array with advanced analog and digital signal processing circuits are an elegant solution to measuring the orientation of a rotating magnetic, for example, in end-shaft or side-shaft applications (see Figures 4 and 5).
This technology is the basis for many of Allegro's angle sensor ICs. The video below contains a detailed description of the inner working of our CVH angle sensors.
The A1262 integrated circuit is an ultrasensitive dual-channel Hall-effect latch. As with conventional dual-channel latches, the quadrature outputs of the A1262 indicate rotation direction and position/speed of a rotating ring magnet target. It is unique, however, in its use of vertical Hall ...詳細をご覧ください
