APEK81805KES-01-T Evaluation Board

A81805 40V, 2.5A Synchronous Buck Regulator with Ultra-Low Quiescent Current and Low EMI

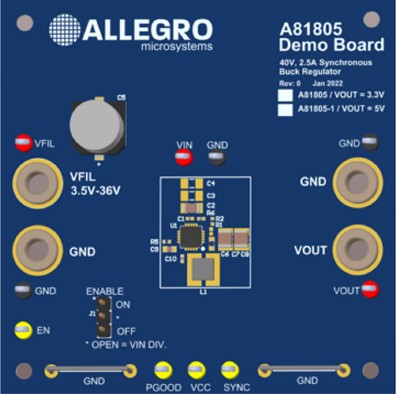

The A81805 Evaluation Board is designed to aid system designers with evaluating the operation and performance of the A81805 and A81805-1 2.5 A synchronous buck regulators. The A81805 Evaluation Board is a PCB that is available in two configurations: the A81805 with VOUT of 3.3 V, and the A81805-1 with VOUT of 5.0 V. The evaluation board will arrive with a mark on one of the two silkscreen boxes at the top right identifying the device for which the evaluation board is configured.

Features

Contents

  • Operating Input Voltage Range: 3.5 to 36 V
  • Output current of up to 2.5 A
  • Enable input through jumper or test point
  • Option for external Sync frequency

  • A81805 Evaluation Board
  • A81805-1 Evaluation Board
