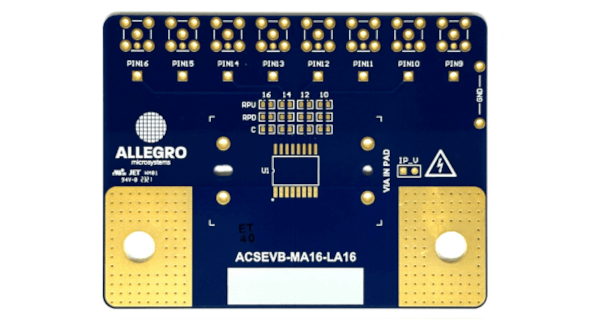

ACSEVB-MA16-LA16 Evaluation Board
ACS37002, ACS724, ACS725, CT433 - Current Sensors
Bare evaluation boards offer a method for evaluating
Allegro current sensors in a lab environment. This document
describes the use of the MA/LA/SW current sensor evaluation
board.This evaluation board (ACSEVB-MA16-LA16,
TED-0004111) is intended for use with any MA, LA or SW
package (16-pin SOIC-W) Allegro Hall-based or TMRbased
current sensors.
High performance FR4 material with 180°C glass
transition temperature
Flexible layout for user installed connection points
Standard Keystone test points
SMA/SMB connector
2-pin headers
Integrated current loop resistance can be measured directly
on the evaluation board after test point installation; voltage
drop can be measured for approximating power loss in the
package.
