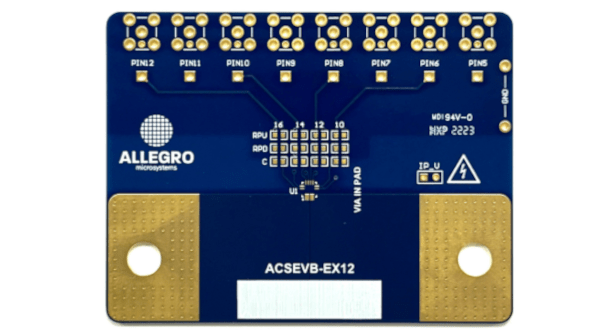

ACSEVB-EX12 Evaluation Board
ACS71240 - Cost-Effective Shunt Alternative Hall-based Current Sensor
BaBare evaluation boards offer a method for evaluating
Allegro current sensors in a lab environment. This document
describes the use of the EX Package Bare Evaluation Board.
This evaluation board (ACSEVB-EX12, TED-0004113) is
intended for use with any EX packaged Allegro current sensor
(EXB 12-contact QFN with wettable flank).
Enhanced thermal performance
□ 6-layer PCB with 2 oz copper weight on all layers
Nonconductive-filled via-in-pad
High-performance FR4 material with 180°C glass
transition temperature
Flexible layout for user installed connection points
Standard Keystone test points
SMA/SMB connector
2-pin headers
Integrated current loop resistance can be measured directly
on the evaluation board after test point installation; voltage
drop can be measured for approximating power loss in the
package.
