ATS642LSH： 带持续校准的双线式真零速微型差分峰值侦测传感器

ATS642 数据表
Navigate

Description

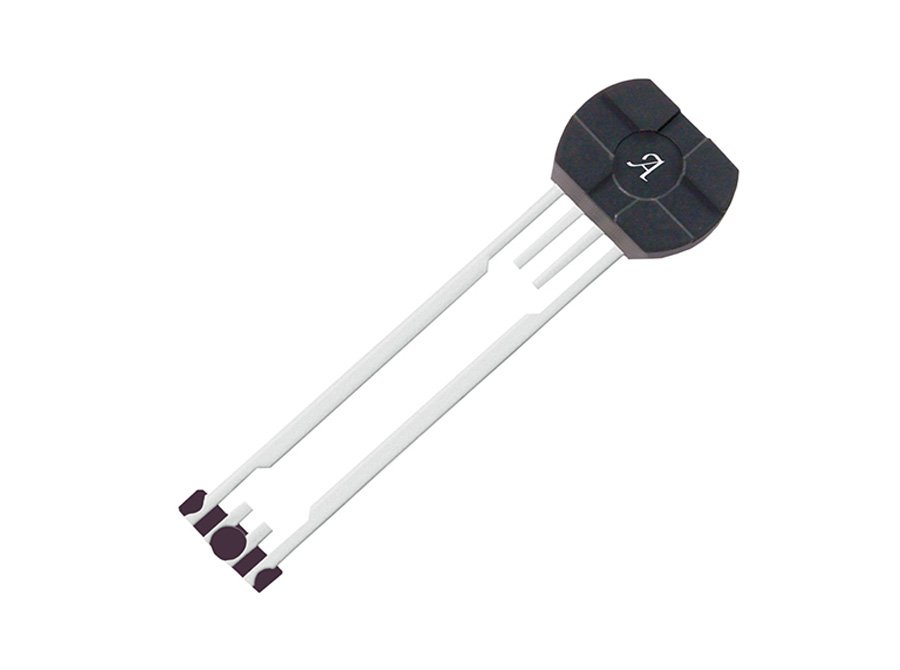

ATS642 是经优化的霍尔效应集成电路，可为双线式应用的真零速数字环形磁铁感测提供用户友好型解决方案。 该器件采用单脉冲模压塑料封装，其中包括钐钴磁铁、极片以及专为磁路优化的霍尔效应 IC。 该小型封装便于组装并能与各种形状及尺寸的齿轮一同使用。

该集成电路将双元件霍尔效应传感器与信号处理相结合，可响应铁氧体齿轮产生的差分磁性信号而进行开关操作。 该电路包含精密数字电路，可减少系统偏置、校准气隙独立开关点的增益并实现真零速操作。 器件通过偏置和增益调整在通电时优化信号，并使用运行模式校准保持工作期间的信号优化。 运行模式校准可保护目标不受诸如微振荡或突然气隙变化等环境影响。

为双线式应用配置稳定电流输出,该器件特别适合获取 ABS 中的速度和占空比信息（防锁死刹车系统）。 经优化的双霍尔元件之间 1.5 毫米的间距专为基于齿轮齿的细距配置。该封装为无铅封装，采用 100% 雾锡电镀引脚框。

关于 SIP 封装，请参阅 A1642LK。

Top Features

  • 用于持续优化的运行模式校准
  • 可实现高可靠性的单芯片 IC
  • 用于双线式操作的内部稳流器
  • 小型机械尺寸（8 mm 直径 × 5.5 mm 高）
  • 相对于操作温度范围的精确占空比信号
  • 较大的工作气隙
  • 气隙独立开关点的自动增益控制 (AGC)
  • 优化信号处理的自动偏移调整 (AOA)
  • 真零速操作
  • 欠压锁定
  • 较宽的工作电压范围
× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
ATS642LSHTN-I1-T 4-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ATS642LSHTN-I2-T 4-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock

Allegro 的产品不允许在任何由于 Allegro 产品的合理故障造成人身伤害的装置或系统中使用，包括但不限于生命支持装置或系统。

Packaging

ATS642 采用 4 引脚 SIP（后缀 SH）封装。 该封装为无铅封装，采用 100% 雾锡电镀引脚框。

SH SIP 4 引脚
