APEK81803KNB-5-T Evaluation Board

APM81803 40V, 3A Synchronous Buck Regulator Module with Integrated EMI Filter

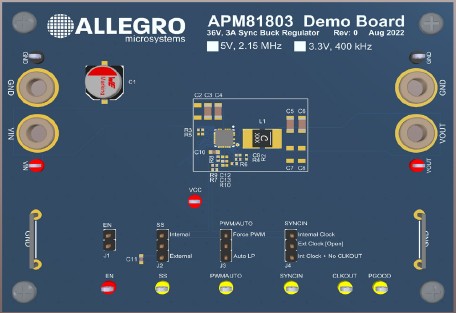

The A81803 evaluation board is designed to aid system designers in evaluating the operation and performance of the APM81803 synchronous buck regulator module. The board will arrive with a mark on one of the silkscreen boxes in the top right of the board to identify how the evaluation board is configured.

Features

Contents

  • APM81803 buck converter power module
  • User selectable soft-start timing control
  • User selectable PWM vs Low Power mode
  • Input to optionally synchronize power converter
    switching

  • APEK81803KNB-5-T Evaluation Board
