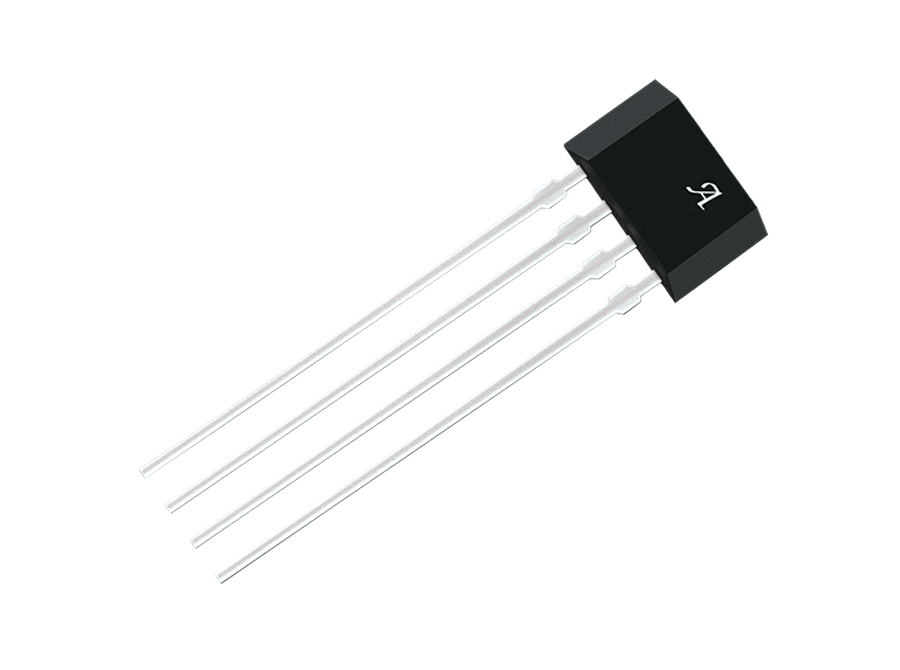

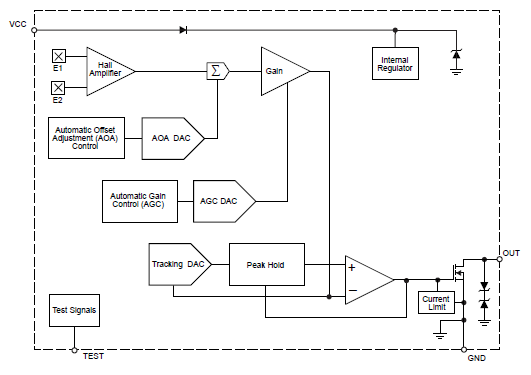

集成电路采用间距为 2.2 mm 的双霍尔效应元件以及信号处理元件,此处理元件可以对环形磁极形成的差分电磁信号进行响应切换。此回路包含复杂数字回路,可以减少系统偏移,校准与气隙无关的切换点的增益,并且可以获得真零点速度操作。在通电状态下,通过偏移与增益调整组合实现信号优化,并在整个工作时间利用运行模式校准保持优化。运行模式校准提供环境效应隔离,比如目标的微振动或是气隙突然改变。
