A5929: Automotive Full-Bridge MOSFET Driver


The A5929 is a full-bridge controller for use with N-channel external power MOSFETs and is specifically designed for automotive applications.

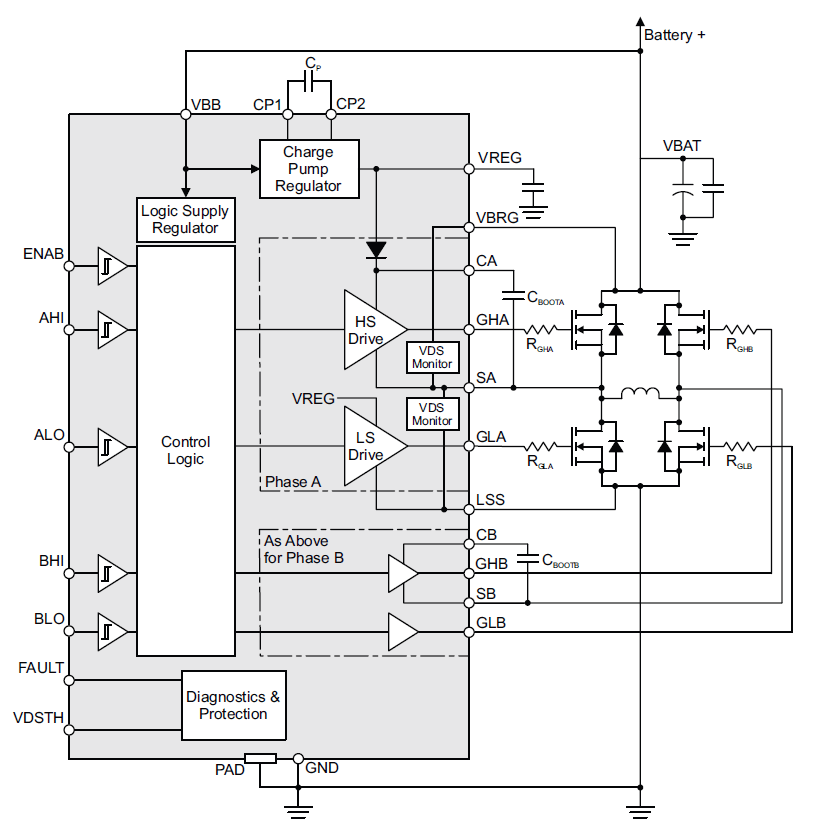

A unique charge pump regulator provides full (>10 V) gate drive at battery voltages down to 7 V and allows the A5929 to operate with reduced gate drive at battery voltages down to 5.5 V. A bootstrap capacitor is used to provide the above battery supply voltage required for n-channel MOSFETs.

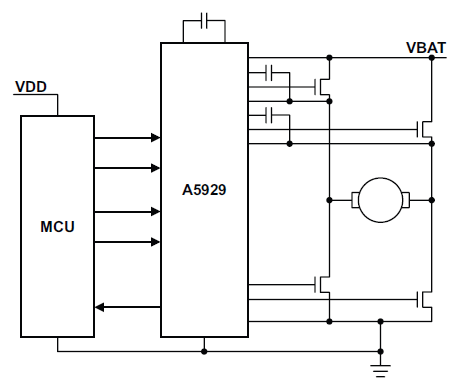

One logic level input is provided for each of the four power MOSFETs in the full-bridge, allowing motors to be driven with any PWM scheme defined by an external controller. The power MOSFETs are protected from cross-conduction by integrated crossover control.

Motor phase short-to-supply and short-to-ground detection is provided by independent drain-source voltage monitors on each MOSFET. Short faults, supply undervoltage, and chip over-temperature conditions are indicated by a single open drain fault output.

The A5929 is supplied in a 24-pin TSSOP power package with an exposed thermal pad (package type LP). This package is available in lead (Pb) free versions, with 100% matte tin lead frame plating (suffix –T).

Top Features

  • High current Full-Bridge gate drive for n-channel MOSFETs
  • Cross-conduction protection
  • 5.5 V to 50 V Supply Voltage Range
  • Motor phase short to supply and short to ground detection
  • Undervoltage, overtemperature monitors
  • Low Current Sleep Mode

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Part Composition /
RoHS Data
Comments Samples Check Stock
APEK5929KLP-01-T DEMO BOARD -20°C to 85°C No -- Contact your
local sales rep
Distributor Stock
A5929KLPTR-T 24-lead TSSOP -40°C to 125°C Yes View Data Contact your
local sales rep
Distributor Stock
