Bipolar Stepper and High-Current DC Motor Driver IC


A5989 Product Image


Top Features


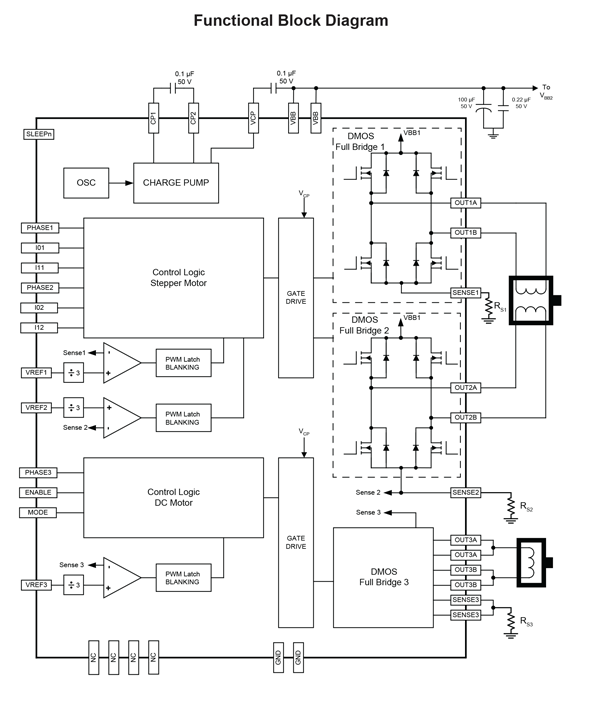

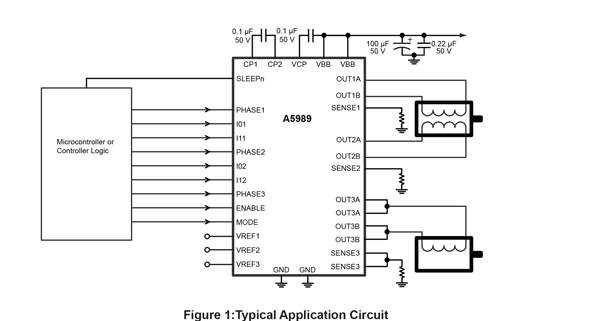

The A5989 is designed to operate at voltages up to 40 V while driving one bipolar stepper motor at currents up to 1.6 A, and one DC motor at currents up to 3.2 A. The A5989 includes a fixed off-time pulsewidth modulation (PWM) regulator for current control. The stepper motor driver features dual 2-bit nonlinear DACs (digital-to-analog converters) that enable control in full, half, and quarter steps. The DC motor is controlled using standard PHASE and ENABLE signals. Fast or slow current decay is selected via the MODE pin. The PWM current regulator uses the Allegro™ patented mixed decay mode for reduced audible motor noise, increased step accuracy, and reduced power dissipation.

Internal synchronous rectification control circuitry is provided to improve power dissipation during PWM operation.

Protection features include thermal shutdown with hysteresis, undervoltage lockout (UVLO), crossover-current and short-circuit protection. Special power-up sequencing is not required.

The A5989 is supplied in a leadless 6 mm × 6 mm × 0.9 mm, 36-pin QFN package with exposed power tab for enhanced thermal performance.

The package is lead (Pb) free, with 100% matte tin leadframe plating.

  • 40 V output rating
  • 3.2 A DC motor driver
  • 1.6 A bipolar stepper driver
  • Synchronous rectification
  • Internal undervoltage lockout (UVLO)
  • Thermal shutdown circuitry
  • Crossover-current protection
  • Very thin profile QFN package
  • Overcurrent protection
  • Low-power sleep mode
  • 3.3 and 5 V compatible logic supply

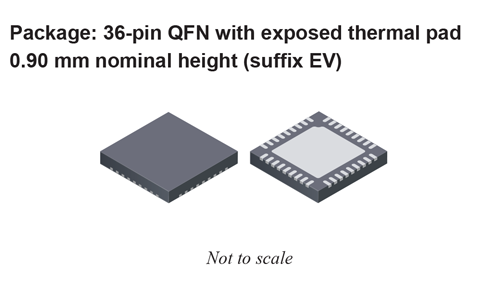

36-pin QFN with exposed thermal pad 0.90 mm nominal height (suffix EV)
