A89306: Code Free Three-Phase BLDC FOC Motor Drive with Integrated Speed & Power Features



Top Features

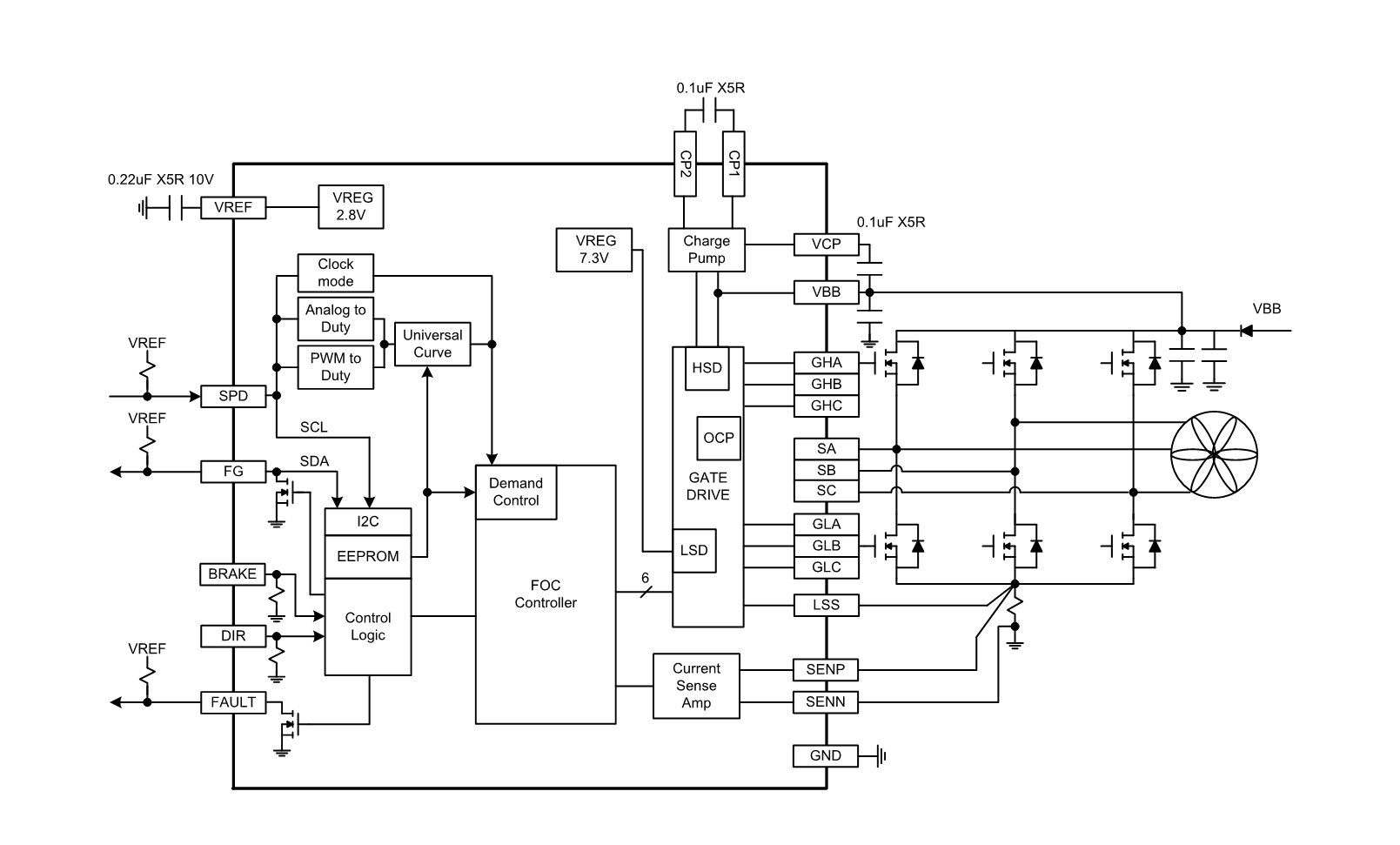

The A89306 is a three-phase sensorless brushless DC (BLDC) gate driver  that offers industry leading audible noise performance that provides the achievement of higher efficiency and low acoustic sound for applications operating from 5.5 to 50 V.  As the latest offering in Allegro's QuietMotion family, the A89306 boasts a integrated field-oriented control (FOC) algorithm that is embedded with Universal Speed Curve and Constant Power/Torque, eliminating the need of external microcontrollers (MCUs).

Significantly improving time to market and reducing engineering efforts, the A89306 is a plug-and-play Solution that enables a reduction in the Bill of Materials (BOM) and Engienering time. The device also optimizes the motor startup performance in a stationary condition, a windmill condition, and even in a reverse windmill condition. Motor output and speed is controlled through analog, PWM, or using I2C.  A simple GUI is provided for ease of tunning and completely elinimate the need of software writing.

The A89306 is available in a surface mount 28-contact 5 mm × 5 mm QFN (suffix ET) package. The package has an exposed pad for enhanced thermal dissipation, and lead (Pb) free, with 100% matte-tin leadframe plating.

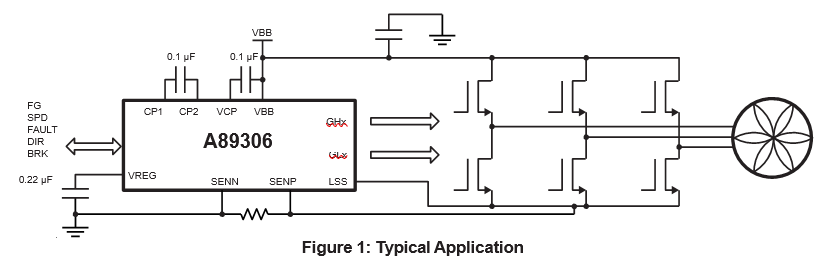

Target Applications

  • Humidifier, Air Purifier, Dehumidifier Blowers
  • Water Heater Exhaust Blower
  • Ventilation Fans
  • Code-free sensorless field-oriented control (FOC)
  • Constant speed, constant torque, constant power, or open-loop operating mode
  • Universal speed/power/torque/duty curve
  • Ultra-quiet high and low speed operation
  • Proprietary non-reverse fast startup

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Part Composition /
RoHS Data
Comments Samples Check Stock
A89306GETSR-T 28-lead QFN -40°C to 105°C Yes View Data Contact your
local sales rep
Distributor Stock
APEK89306GET-01-T DEMO BOARD -40°C to 105°C No -- Contact your
local sales rep
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.



28-contact QFN with exposed thermal pad 5 mm x 5 mm x 0.9 mm (ET Package)

ET Package Documentation

Design Support Tools

Allegro Customer Portal: Gain access to Allegro product software and design tools.

Technical Articles

Sensorless and Always Without Reverse Rotation: Rapid and Accurate Startup for Blower Fan Motors »
