Quad DMOS Full-Bridge PWM Motor Driver


A5990 Product Image


Top Features


The A5990 is a quad DMOS full-bridge driver capable of driving up to two stepper motors or four DC motors. Each full-bridge output is rated up to 1.6 A and 40 V. The A5990 includes fixed off-time pulse-width modulation (PWM) current regulators, along with 2- bit nonlinear DACs (digital-to-analog converters) that allow stepper motors to be controlled in full, half, and quarter steps, and DC motors in forward, reverse, and coast modes. The A5990 PWM current regulator features externally adjustable off-time to adapt the current control to supply voltage and motor parameters (each bridge pair can be adjusted independently). The A5990 also features a QuietStepTM option which automatically and continuously adjusts the fast decay portion of the off-time to provide increased step accuracy, lower current ripple, and reduced power dissipation in many conditions. Alternatively the A5990 can be set to use the Allegro patented fast decay mode with fixed percent fast decay of 30.1%.

Internal synchronous rectification control circuitry is provided to improve power dissipation during PWM operation. To minimize power consumption when not in use, the A5990 can be put into a low current Sleep Mode. Protection features include thermal shutdown with hysteresis, undervoltage lockout (UVLO), over current (OCP) and crossover-current protection. Special power-up sequencing is not required.

The A5990 is supplied in the EV package, a 6 mm × 6 mm 40-pin QFN package with a nominal overall package height of 0.90 mm. The packages is lead (Pb) free, with 100% matte tin leadframe plating.

  • 40 V output rating
  • 4 full bridges
  • Dual stepper motor driver
  • High-current outputs
  • QuietStep option
  • Adjustable off-time
  • 3.3 and 5 V compatible logic supply
  • Synchronous rectification
  • Internal undervoltage lockout (UVLO)
  • Thermal shutdown circuitry
  • Crossover-current protection
  • Overcurrent protection
  • Low-power sleep mode
  • Low-profile QFN package

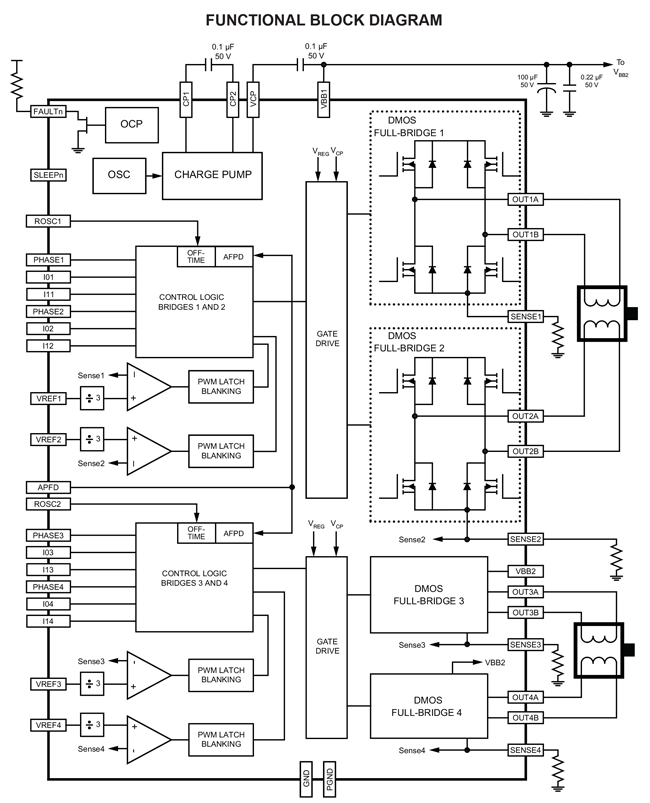

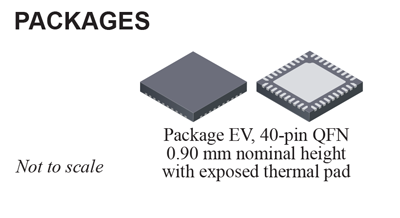

Package EV, 40pin QFN 0.90 mm nominal height with exposed thermal pad
