ACS770xCB: Thermally Enhanced, Fully Integrated, Hall Effect-Based High Precision Linear Current Sensor IC with 100 μΩ Current Conductor

CA/CB 5 pin


Top Features


The Allegro™ ACS770 family of current sensor ICs provides economical and precise solutions for AC or DC current sensing. Typical applications include motor control, load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.

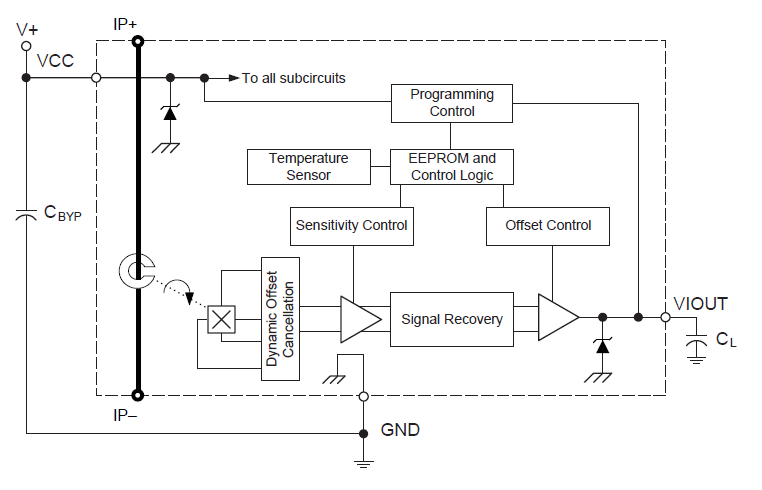

The device consists of a precision, low-offset linear Hall circuit with a copper conduction path located near the die. Applied current flowing through this copper conduction path generates a magnetic field that is concentrated by a low magnetic hysteresis core, then converted by the Hall IC into a proportional voltage. Device accuracy is optimized through the close proximity of the magnetic signal to the Hall transducer. A precise, proportional output voltage is provided by the low-offset, chopper-stabilized BiCMOS Hall IC, which is programmed for accuracy at the factory. Proprietary digital temperature compensation technology greatly improves the IC accuracy and temperature stability without influencing the high bandwidth operation of the analog output.

High level immunity to current conductor dV/dt and stray electric fields is offered by Allegro proprietary integrated shield technology for low output voltage ripple and low offset drift in high-side, high voltage applications.

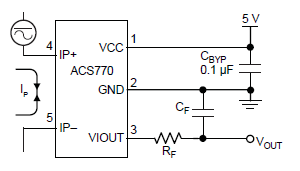

The output of the device has a positive slope (>VCC/2 for bidirectional devices) when an increasing current flows through the primary copper conduction path (from terminal 4 to terminal 5), which is the path used for current sampling. The internal resistance of this conductive path is 100 μΩ typical, providing low power loss.

The thickness of the copper conductor allows survival of the device at high overcurrent conditions. The terminals of the conductive path are electrically isolated from the signal leads (pins 1 through 3). This allows the ACS770 family of sensor ICs to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques.

The device is fully calibrated prior to shipment from the factory. The ACS770 family is lead (Pb) free. All leads are plated with 100% matte tin, and there is no Pb inside the package. The heavy gauge leadframe is made of oxygen-free copper.

  • Industry-leading total output accuracy achieved with new piecewise linear digital temperature compensation of offset and sensitivity
  • Industry-leading noise performance through proprietary amplifier and filter design techniques
  • 120 kHz typical bandwidth
  • 4.1 μs output rise time in response to step input current
  • Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications
  • Greatly improved total output error through digitally programmed and compensated gain and offset over the full operating temperature range
  • Small package size, with easy mounting capability
  • Monolithic Hall IC for high reliability
  • Ultra-low power loss: 100 μΩ internal conductor resistance
  • Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
  • 4.5 to 5.5 V, single supply operation
  • Output voltage proportional to AC or DC currents
  • Factory-trimmed for accuracy
  • Extremely stable output offset voltage
  • Undervoltage lockout for VCC below specification
  • AEC-Q100 automotive qualified
  • UL certified, File No. E316429
Current Sensor Ac Dc current sensing package image

The ACS770 family is lead (Pb) free. All leads are plated with 100% matte tin, and there is no Pb inside the package. The heavy gauge leadframe is made of oxygen-free copper.

CB PFF Package Documentation

CB PSF Package Documentation

CB PSS Package Documentation

Part Number Specifications and Availability

Documentation and Resources


Design Tools

Third Party Tools

Filter Document Type:
All Types
All Types Application Note FAQ Technical Article
Documents Found: 32
Filter Document Type:
All Types
All Types CB Certificate Certificates of Compliance Gerber File Simulation Tool SPICE Model
Documents Found: 32
Document Type Document Name
CB Certificate
Certificates of Compliance
20170510-E316429 Certificate of Compliance
Gerber File
ASEK770 Gerber Files
Simulation Tool
Current Sensor Error and Resolution
ACS LTspice Library

Mikroe Demoboards

PWR Meter 3 Demo Board

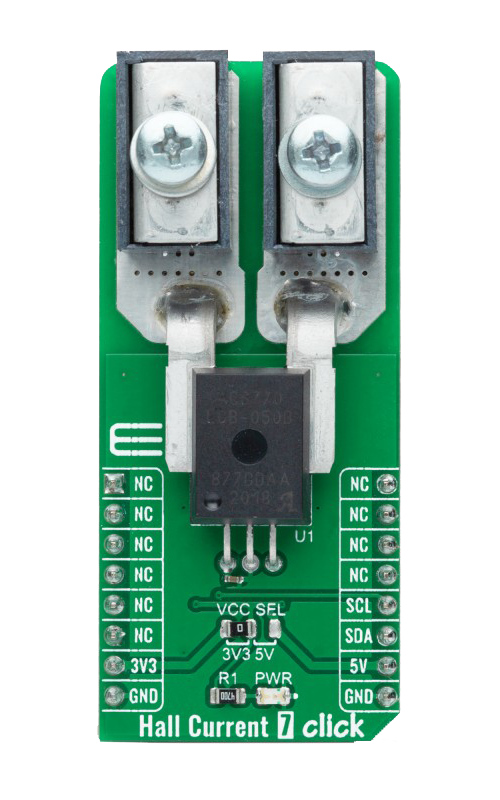

Hall Current 7 Click is a compact add-on board that provides economical and precise solutions for AC or DC current sensing. This board features the ACS770, a thermally enhanced, fully integrated, Hall effect-based high precision linear current sensor with 100μΩ current conductor from Allegro Microsystems.
