ATS16301: Auto-TPOS Camshaft Sensor with Integrated EMC Protection

SL Package

ATS16301 Datasheet
Navigate

Description

Top Features

The ATS16301 is a True Power-On State camshaft sensor incorporating a non-rare-earth back-biasing magnet, advanced fully synchronous digital IC, and an EMC protection circuit all in a single sensing solution.

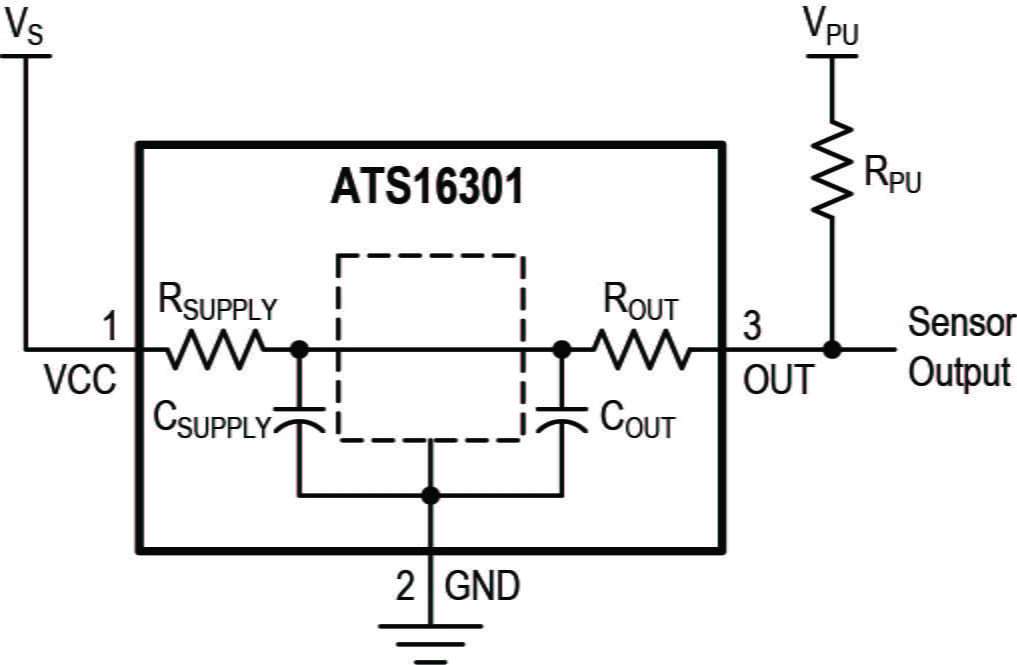

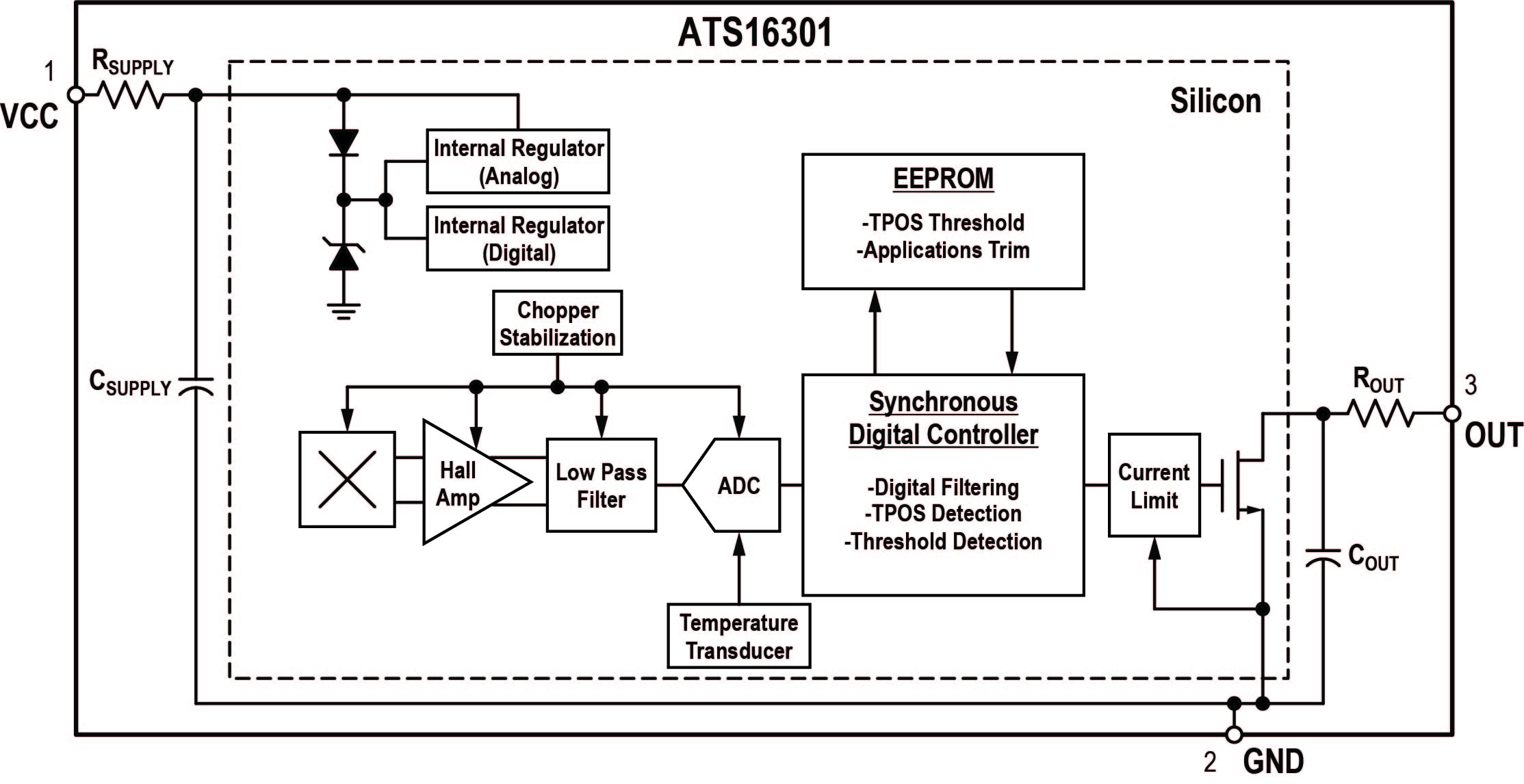

The ATS16301 incorporates a single element Hall IC with an optimized custom magnet that switches in response to magnetic signals induced by a ferromagnetic target. The IC contains a sophisticated digital circuit designed to match the temperature behavior of the IC with the integrated magnet. Signal processing is used to provide zero-speed performance independent of air gap and is designed for the typical operating conditions found in automotive camshaft sensing applications. The resulting output of the device is a digital representation of the ferromagnetic target profile. A number of factory-programmable options allow for performance optimization to meet specific application requirements.

  • SL package provides a fully integrated solution with a non-rare-earth back-biasing magnet and EMC protection circuit
  • True target state recognition at device power-on (TPOS) with automatic TPOS self-programming capability
  • EEPROM programming for performance optimization, temperature compensation, and production traceability
  • Fully synchronous digital logic with Scan Path and IDDQ testing for high quality and reliability
  • Chopper stabilization reduces offset drift
  • Absolute zero-speed performance

Typical Applications

  • Camshaft
× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
ATS16301LSLCTN-MUI12B-LT 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

SL Package

Packaging

3-pin SIP (suffix SL)

SL Package Documentation

Application Notes

Impact of Magnetic Relative Permeability of Ferromagnetic Target on Back-Biased Sensor Output
