Allegro MicroSystems recommends APS12400 for all new Automotive 2-wire Hall-Effect latch IC designs.

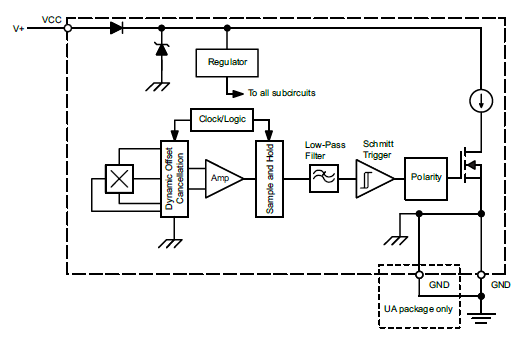

The A1245 is a two-wire Hall-effect latch. The device is produced on the Allegro™ advanced BiCMOS wafer fabrication process, which implements a patented high frequency, 4-phase, chopper-stabilization technique. This technique achieves magnetic stability over the full operating temperature range, and eliminates offsets inherent in devices with a single Hall element that are exposed to harsh application environments.

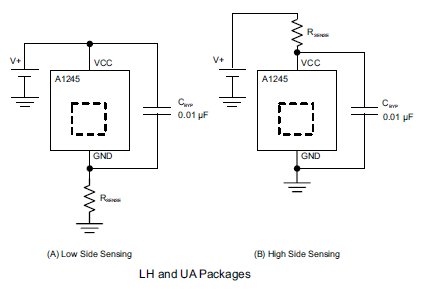

Two-wire latches are particularly advantageous in cost-sensitive applications because they require one less wire for operation versus the more traditional open-collector output switches. Additionally, the system designer inherently gains diagnostics because there is always output current flowing, which should be in either of two narrow ranges. Any current level not within these ranges indicates a fault condition.
The Hall-effect latch will be in the high output current state in the presence of a magnetic south polarity field of sufficient magnitude and will remain in this state until a sufficient north polarity field is present.
The device is offered in two package styles. The LH is a SOT-23W style, miniature low profile package for surface-mount applications. The UA is a 3-pin ultra-mini single inline packages (SIP) for through-hole mounting. Both packages are lead (Pb) free, with 100% matte tin leadframe plating.
|Part Number||Package Type||Temperature||RoHS
|Part Composition /
|A1245LUA-I1-T||3-lead SIP||-40°C to 150°C||Yes||View Data||Contact your
local sales rep
|A1245LUA-I2-T||3-lead SIP||-40°C to 150°C||Yes||View Data||Contact your
local sales rep
Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.
Allegro MicroSystems uses the latest integrated circuit technology in combination with the century-old Hall effect to produce Hall-effect ICs. These are contactless, magnetically activated switches and sensor ICs with the potential to simplify and improve electrical and mechanical systems.Learn More
AN29006 - This document describes typical soldering methods that have been proven effective with Allegro™ products. It provides information on SMD (surface mount devices) and through-hole packages. Both lead (Pb) free and traditional Pb-based technologies are examined.Learn More
This document covers most of the assembly methods used for mounting Hall-effect devices. In Allegro® Hall-effect devices, the signal is conditioned and optimized for various types of magnetic inputs to produce a suitable electrical output.Learn More
Electronic devices are available in many package types and can contain semiconductors (integrated circuits), magnets, capacitors, and resistors. This application note provides guidelines for the handling and storage of Allegro devices with regards to functionality and shelf life. Precautions ...Learn More
Switch and Latch
There are four general categories of Hall-effect IC devices that provide a digital output: unipolar switches, bipolar switches, omnipolar switches, and latches. Latching Hall-effect sensor ICs, often referred to as "latches," are digital output Hall-effect switches that latch output states.Learn More
