APEK4919GET-01-T Evaluation Board

A4919 - Three-Phase MOSFET Driver with Integrated Regulator, Gate Drive, and Fault Protection

The motor can be controlled via an externally supplied PWM signal input on the logic input terminals. The maximum current limit for the board is 10 A, and it is important to keep the maximum current below this value.

Top Features

Contents

  • 28-pin QFN package A4919GETTR-T gate driver
  • 5 V on-board voltage regulator
  • High-current three-way connector for motor connection
  • High-current two-way connector for supply connection
  • Fault display LED
  • Eight-position DIP switch for manual control of logic inputs

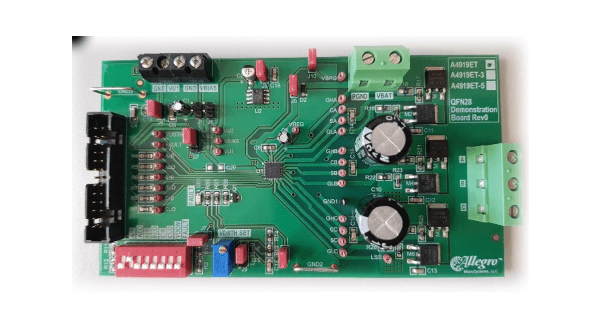

A4919 evaluation board with A4919 device soldered on.
