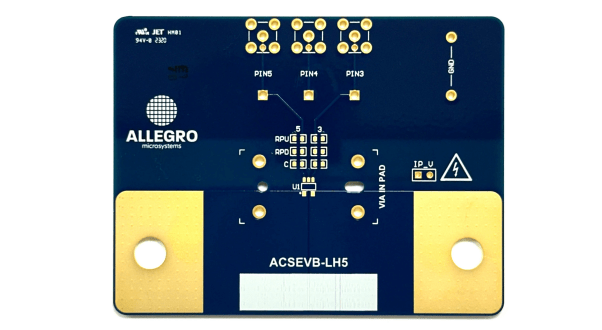

ACSEVB-LH5 Evaluation Board
ACS37041 - AEC-Q100 Qualified Hall-effect Current Sensor in SOT23W-5 Package for Cost-Optimized and Shunt Replacement Applications
Bare evaluation boards offer a method for evaluating
Allegro current sensors in a lab environment. This document
describes the use of the LH current sensor evaluation board.
This evaluation board (ACSEVB-LH5, TED-0004112) is
intended for use with any LH package (LHB SOT23–W
5-pin Allegro current sensor).
High-performance FR4 material with 180°C glass
transition temperature
Flexible layout for user installed connection points
Standard Keystone test points
SMA/SMB connector
2-pin headers
Integrated current loop resistance can be measured directly
on the evaluation board after test point installation; voltage
drop can be measured for approximating power loss in the
package.
Bare printed circuit board without populated components
NOTE: It is up to the user to assemble the board with the desired current sensor and supporting circuitry. This board does not come populated with an Allegro current sensor or other components.
Recommended supporting circuitry for all compatible current sensor are listed in the Supporting Circuitry section below.
