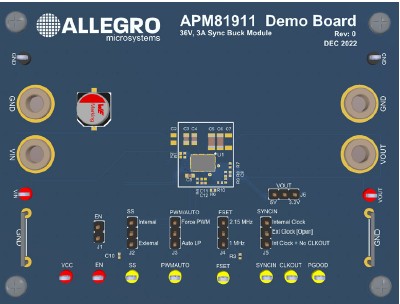

APEK81911KNB-01-T Evaluation Board

APM81911 40V, 3A Synchronous Buck Regulator Module with Integrated Inductor and EMI Filter

The APM81911 Evaluation Board is designed to help system designers evaluate the operation and performance of the APM81911 synchronous buck regulator ClearPower module. The APM81911 evaluation board output voltage can be configured with a jumper for 5 V or 3.3 V.

Features

Contents

  • APM81911 buck converter power module
  • User-selectable output voltage, switching frequency, lowpower mode, soft-start time, clock source, and output clock state
  • Banana jacks for input and output power

  • APEK85000-KNB-01-T evaluation board.
