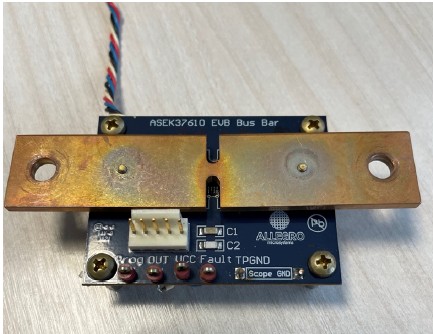

ASEK37610-SUBKIT-T Evaluation Board

ACS37610 Low Noise, Standalone, Coreless Current Sensor with Overcurrent and Overtemperature Detection

This user guide documents the features, operation, and use of the ACS37610 current sensor with the ASEK37610 evaluation board.

Features

The evaluation board is used to evaluate the functionality of the ACS37610, an economical and precise solution for AC and DC current sensing in busbar and high-current PCB (printed circuit board) applications. Applied current through a busbar or PCB generates a magnetic field which is sensed by the Hall IC. The ACS37610 outputs an analog signal that varies linearly with the field sensed within the range specified.
