APS12000 and APS12060: ASIL-A Vertical and Planar 3-Wire Hall-Effect Latches

UA-LH Package

ECAD Models
APS12000/60 Datasheet
Navigate

Description

Top Features

The APS12000 and APS12060 families of Hall-effect latches are flexible solutions with Vertical and Planar Hall sensing orientations.  Four different magnetic field sensitivities make for a versatile latch solution for automotive, industrial, and consumer motor applications. Compliant with ISO 26262, the APS12000/60 ICs are AEC-Q100 qualified for 24 V automotive applications.

These devices are available in active-high and active-low variants for ease of integration into electronic subsystems. These sensors are temperature-stable and suited for operation over extended junction temperature ranges up to 175°C, allowing for reliable operation in harsh environments.

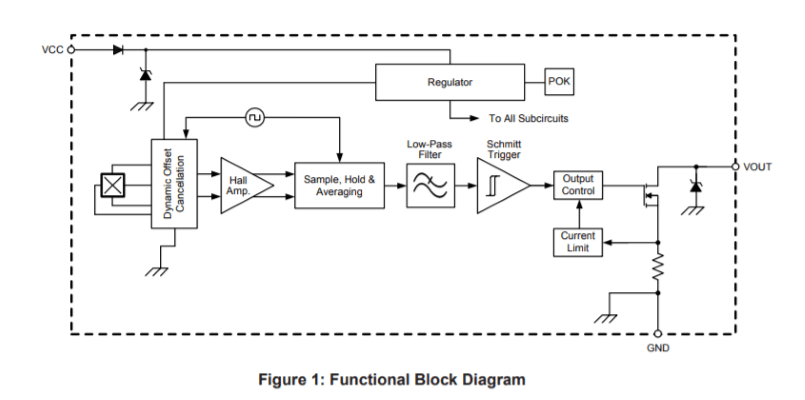

The APS12000 features a Hall-effect element that is sensitive to magnetic flux perpendicular to the face of the IC package.

The APS12060 features a vertical Hall-effect sensing element sensitive to magnetic flux parallel to the face of the IC package.

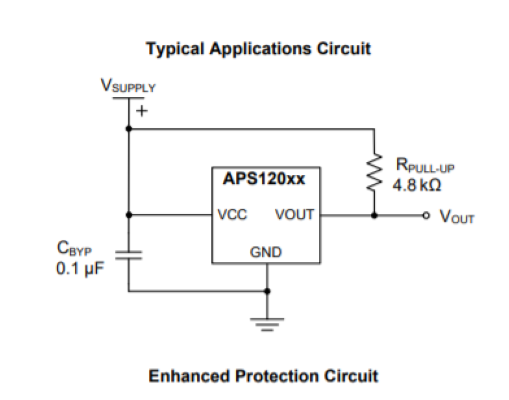

The APS12000 and APS12060 are available in a 3-pin SOT23W surface mount package and a 3-pin ultra-mini SIP through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.


  • ASIL-A rated (ISO-26262)
  • Horizontal or Perpendicular Sensing Planes
  • 175C Temperature Operation
  • Four different Sensitivity Levels
  • SIP and Surface Mount Options
  • Robust Design

× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
APS12000LLHALT-0H 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep		 Check
Distributor Stock
APS12000LLHALX-0H 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep		 Check
Distributor Stock
APS12000LUAA-0H 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LLHALT-0H 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LLHALT-0L 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LLHALT-1L 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LLHALX-0H 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LLHALX-0L 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LLHALX-1L 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LUAA-0H 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LUAA-0L 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12060LUAA-1L 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

UA-LH Package

Packaging

The APS12000 and APS12060 are available in a 3-pin SOT23W surface mount package and a 3-pin ultra-mini SIP through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.

LH Package Documentation

UA Package Documentation

Application Notes

Hall Effect ICs Application Guide

Soldering Methods for Allegro Products (SMD and Through-Hole)
