1MHz, High Precision XtremeSense TMR Isolated Current Sensor in SOIC-8 Package

CT415, CT416, CT417, CT418

Download Datasheet

Navigate

Product Detail
Availability
Documentation and Resources

Description

Top Features

Typical Applications

Packaging

The CT41x family is a high bandwidth, fast response and ultra-low noise integrated contact current sensors that use Allegro MicroSystems’ patented XtremeSense™ TMR technology to enable high accuracy current measurements for many consumer, enterprise, and industrial applications. It supports eight (8) current ranges where the integrated current carrying conductor (CCC) will handle up to 65 A of current and generates a current measurement as a linear analog output voltage. It achieves a total output error of ±1.0% full-scale (FS) over voltage and the full temperature range.

The CT41x family is offered in an industry standard 8-lead SOIC package that is “green” and RoHS compliant.

CT415 & CT418 (5.0 V version), CT416 & CT417 (3.3 V version)
Integrated 0.5 mΩ Conductor
Total Error Output: 1% FS (typ.)
300 ns Response Time, 1 MHz Bandwidth
Noise as Low as 9 mARMS
Immunity to Common Mode Field: -40 dB
Rated Isolation Voltage: >2.5 kVRMS
UL/IEC 62368-1 and UL1577 Certification
IEC 61000-4-5 Certified
AC or DC Current Range:
- +20.0 ADC / ±20.0 APK
- +30.0 ADC / ±30.0 APK
- +50.0 ADC / ±50.0 APK
- +65.0 ADC / ±65.0 APK
Pin #6 Functionality
- CT417 & CT418: Over-Current Detection Output Pin
- CT415 & CT416: Enhanced Filter to Lower Noise

Solar/Power Inverters
UPS, SMPS and Telecom Power Supplies
Motor Control
Power Utility Meter
Over-Current Fault Protection

The CT41x family is offered in an industry standard 8-lead SOIC package that is “green” and RoHS compliant.

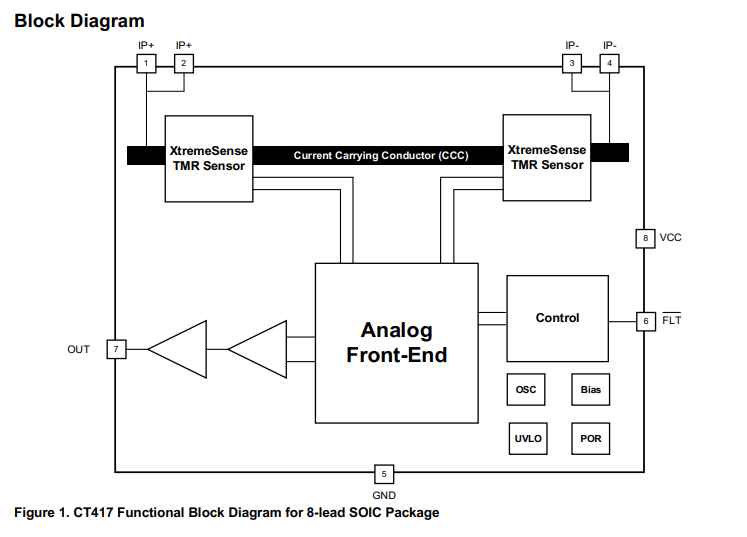

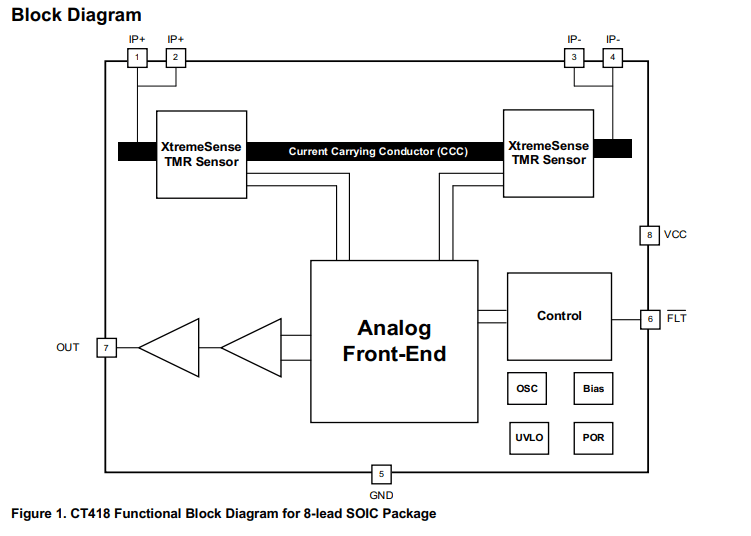

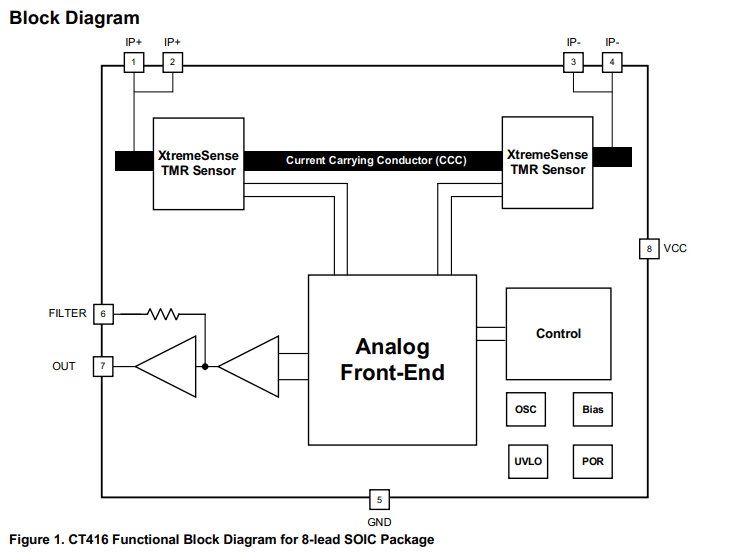

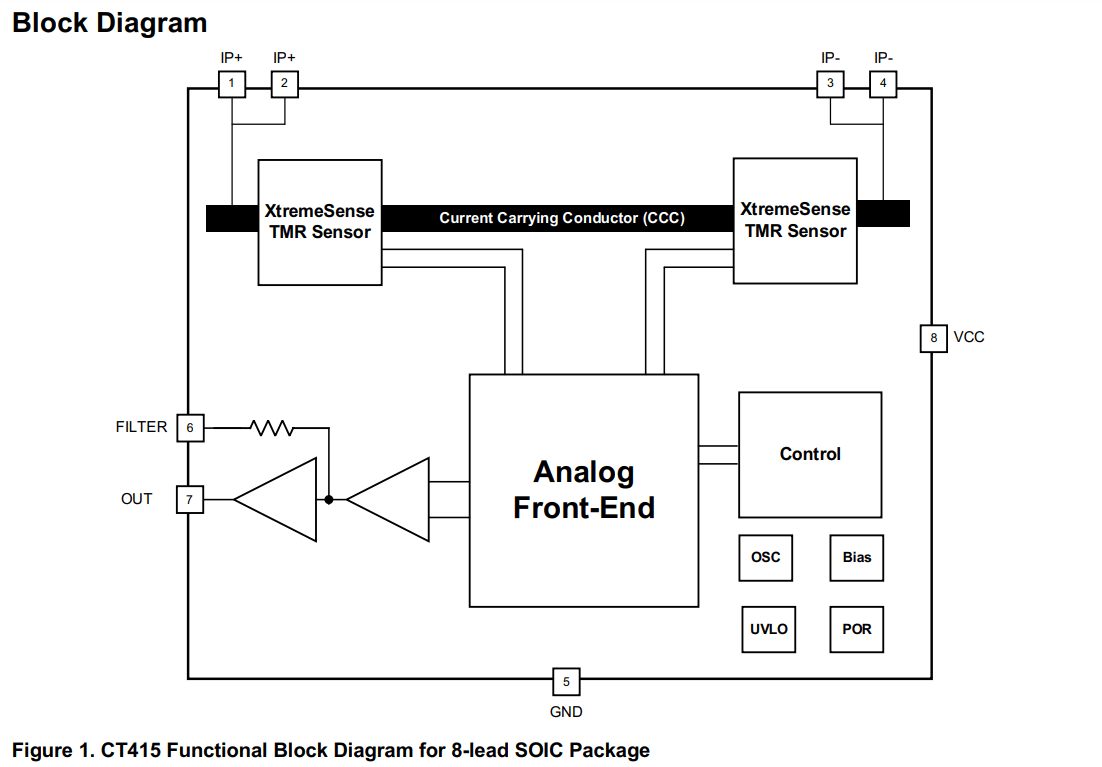

CT41x: 1 MHz, High Precision XtremeSense TMR Isolated Current Sensor inn SOIC-8 Package Functional Block Diagram

Part Number Specifications and Availability

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.

Learn More

Documentation and Resources

Documentation

Design Tools

Third Party Design Tools
