Self-Powered Isolated GaN FET Driver with Regulated Bipolar Output

AHV85111

Self-Powered Single-Channel Isolated GaNFET Gate Driver with Regulated Bipolar Output Drive

The AHV85111 offers precise and flexible gate drive for GaN FETs, with a regulated bipolar output, adjustable positive rail, and integrated bias supply for simplified design and improved dv/dt immunity.

Download Datasheet

Navigate

Product Detail
Availability
Documentation and Resources

Top Features

Typical Applications

Packaging

Transformer isolation barrier
Power-Thru integrated isolated bias
- No need for high-side bootstrap
- No need for external secondary-side bias
AEC-Q100 Grade 2 qualification
Bipolar drive output with adjustable regulated positive rail
Built-in primary-side 3.3V REF bias output
50ns propagation delay
Separate drive output pins: pull-up (2.8 Ω) and pull-down (1.0 Ω)
Supply voltage 10.8 V < VDRV < 13.2 V
Undervoltage lockout on primary VDRV and secondary VSEC
Enable pin with fast response
Continuous ON capability—no need to recycle IN or recharge bootstrap capacitor
CMTI > 100 V/ns dv/dt immunity
Creepage distance 8.4 mm
Safety Regulatory Approvals
- 5 kV RMS VISO per UL 1577
- 8 kV pk VIOTM maximum transient isolation voltage
- 1 kV pk maximum working isolation voltage

AC-DC and DC-DC converters: Totem-pole PFC, LLC half-/full-bridge, SR drive, multi-level converters, phase-shifted full-bridge
Automotive: EV chargers, OBC
Industrial: Data center, transportation, robotics, audio
Clean Energy: Micro-inverters, string-inverters and solar inverters

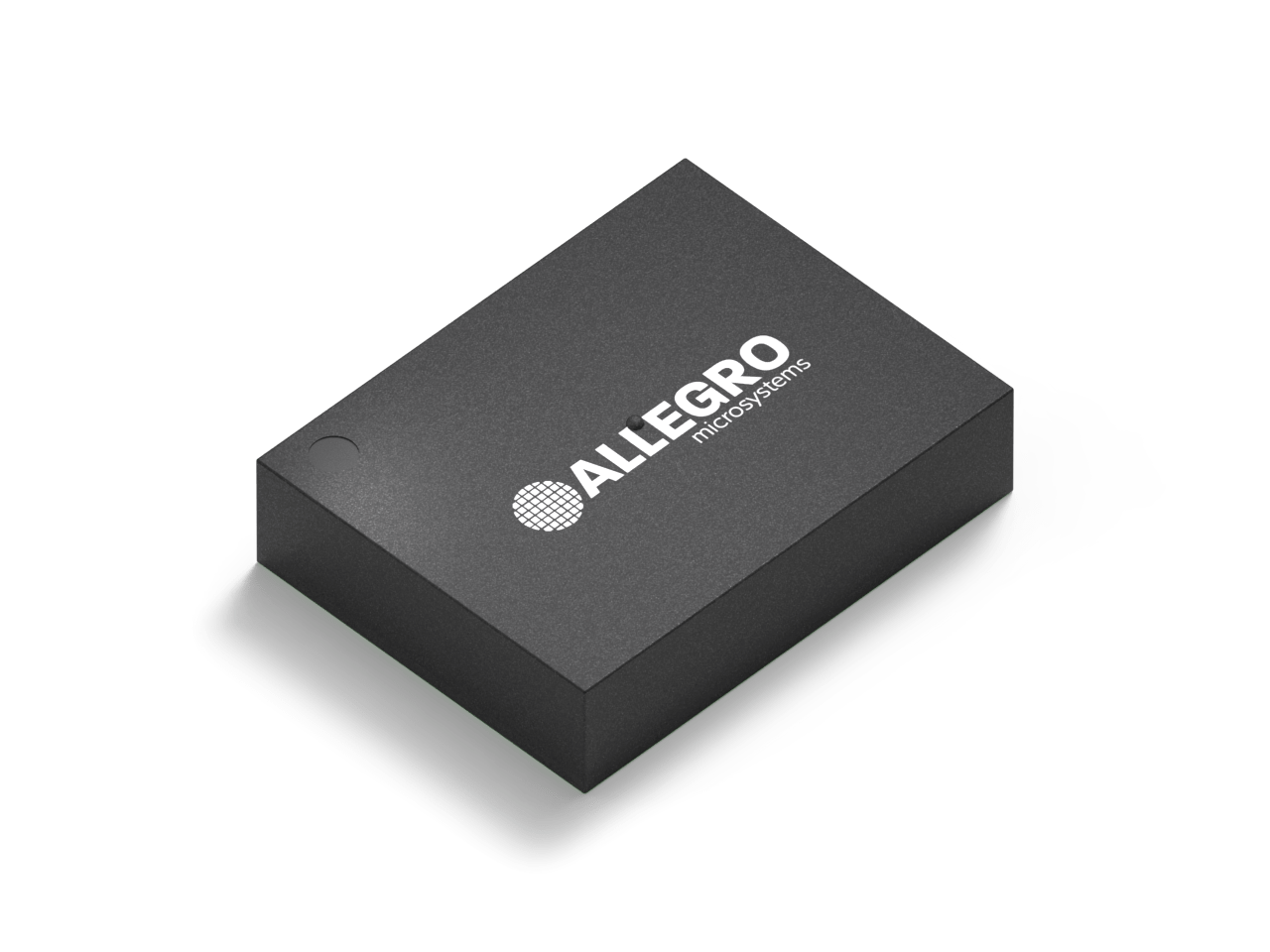

The device is available in a compact low-profile surface-mount NH package. Several protection features are integrated, including undervoltage lockout on primary and secondary bias rails, internal pull-down on IN pin and OUTPD pin, fast response enable input, overtemperature shutdown, and OUT pulse synchronization with first IN rising edge after enable (avoids asynchronous runt pulses).

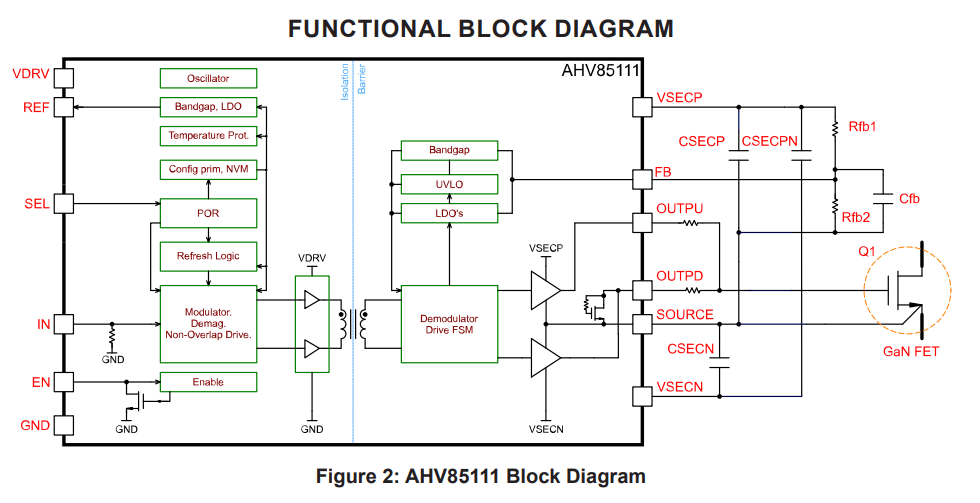

Self-Powered Single Channel Isolated GaNFET Driver with Regulated Bipolar Output Drive Functional Block Diagram

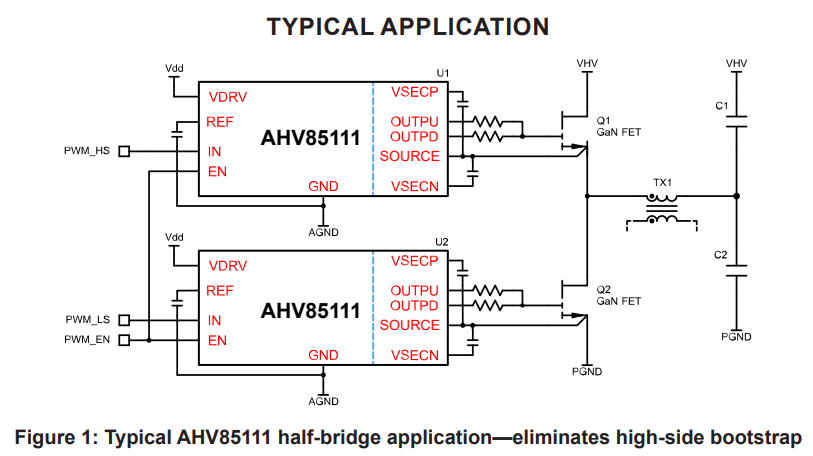

Self-Powered Single Channel Isolated GaNFET Driver with Regulated Bipolar Output Drive Typical Application Diagram

Part Number Specifications and Availability

AHV85111 Product Overview

The AHV85111 isolated gate driver is optimized for driving GaN FETs in multiple applications. An isolated dual positive/negative output bias supply is integrated into the driver device, eliminating external gate drive auxiliary bias supply or high-side bootstrap.
